GeoCue TrueView 539 (TV539) combines a CHCNAV 1535 nm LiDAR (up to 6 returns, 500 kHz, ~300 m) with a 26 MP full-frame global-shutter camera in a 1.45 kg payload. Includes LP360 Drone; typical absolute accuracy ~2–5 cm.

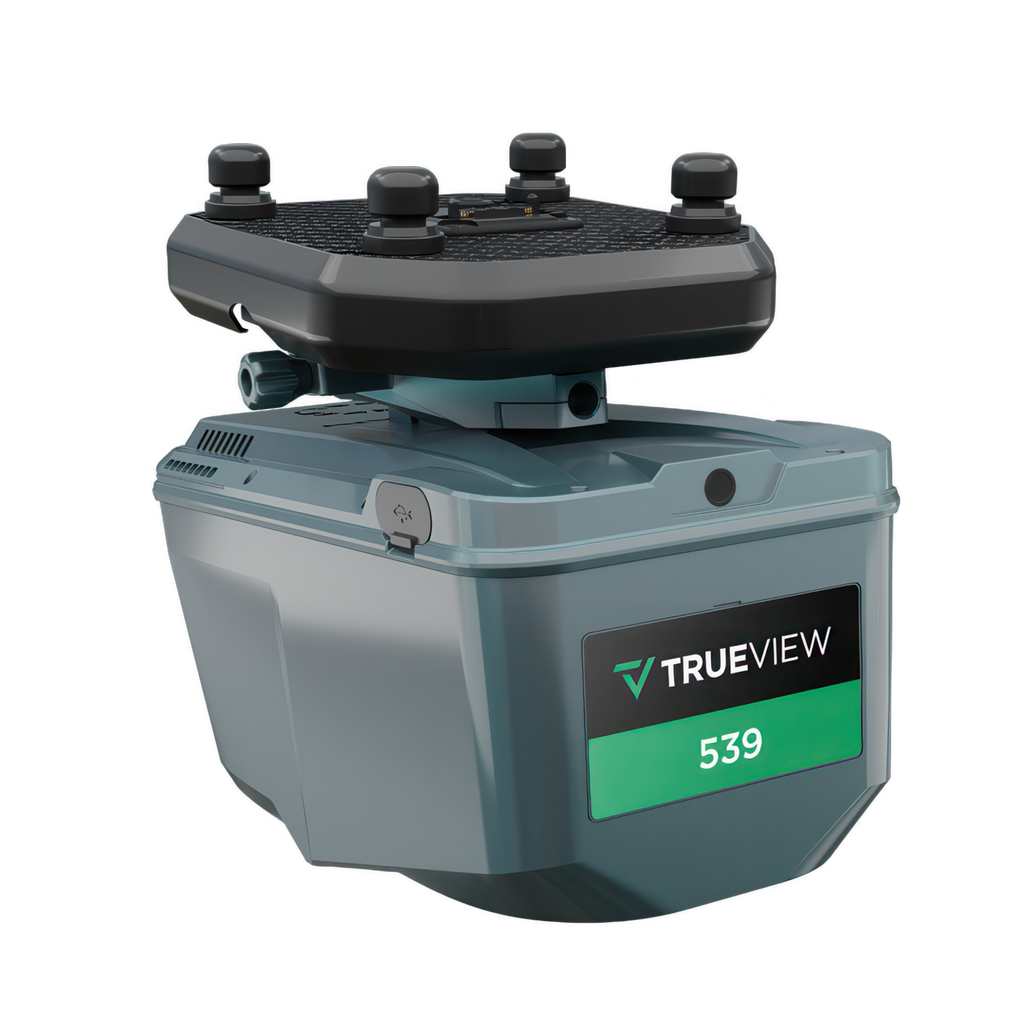

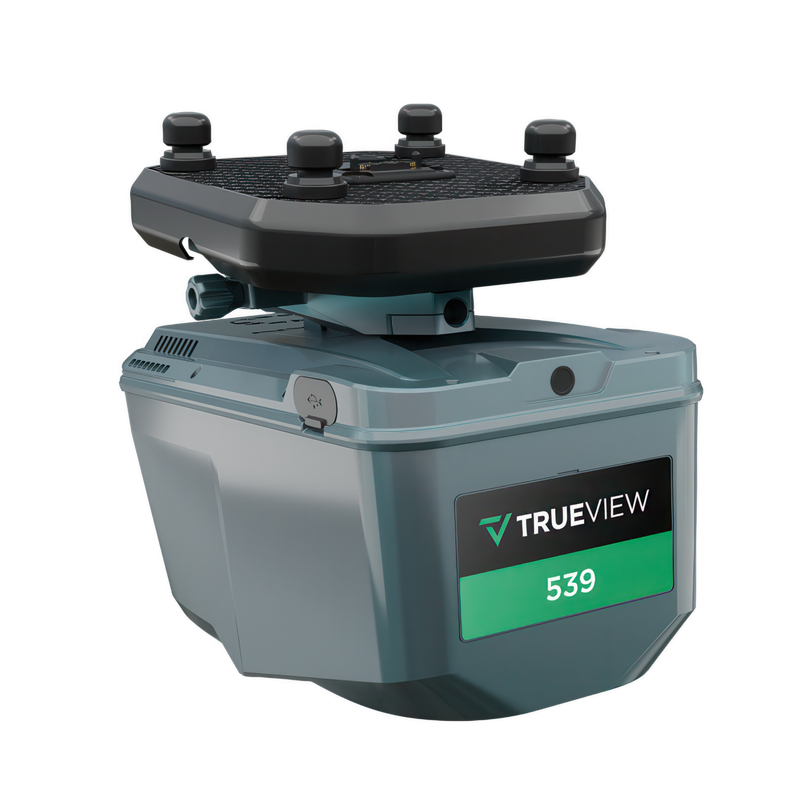

The GeoCue TrueView 539 (TV539) brings engineering-grade LiDAR to a wider range of survey teams by combining a high-precision laser scanner with a 26 MP full-frame global-shutter camera in a compact, ~1.45 kg payload. Paired with LP360 Drone, TV539 streamlines acquisition, QC, and deliverables without compromising on accuracy.
Introducing TV539
Built on lessons from the TrueView 540, TV539 delivers the precision and flexibility professionals expect—at a more accessible price point. Expect confident vegetation penetration, consistent accuracies, and a workflow that scales from quick site checks to complex, multi-flight projects.
Why it fits professional survey workflows
- Engineering-grade results: system absolute accuracy typically ~2–5 cm (project, GNSS, and control dependent).
- High-fidelity LiDAR: up to 6 returns per pulse for detail through canopy and complex structures.
- True mapping camera: 26 MP full-frame global-shutter imagery for crisp colorization and planimetrics.
- Lightweight & versatile: ~1.45 kg payload integrates with most commercial UAVs; ~1.75–1.90 kg with accessories.
- Field-ready: operates from −20 °C to +50 °C for year-round deployments.
LiDAR + Imagery Collection
- Laser scanner: CHCNAV single-beam (1535 nm)
- Returns: up to 6
- Usable range: up to ~300 m on >20% reflectivity targets
- Pulse repetition rate: up to 500 kHz
- Sensor performance: ~5 mm precision; ~15 mm accuracy
Trajectory & Orientation
TV539 incorporates CHC’s PPK navigation with tightly coupled GNSS/INS to stabilize trajectories and support consistent absolute accuracies.
- Position: ~10–20 mm
- Attitude: ~0.006° roll/pitch; ~0.019° heading
LP360 Drone Workflow
Every TV539 includes LP360 Drone for processing your LiDAR and imagery. Expand capabilities with optional add-ons as project needs evolve.
- Core LP360 Drone: intuitive workflow; multi-flight import & processing; GIS-friendly interface; synchronized 2D/3D/profile viewers.
- Optional add-ons: Strip Align for Drone (automated cross-strip adjustment), Photo (fast ortho backdrops), 3D Accuracy (automated horizontal/vertical checks), and more.
Designed for Real-World Projects
- Consistent results across vegetation, corridors, and built environments.
- Compact form factor reduces integration effort on popular commercial UAVs.
- Accessory path (~1.75–1.90 kg with mounts/antennas) to match platform and mission requirements.
The GeoCue TrueView 539 (TV539) brings engineering-grade LiDAR to a wider range of survey teams by combining a high-precision laser scanner with a 26 MP full-frame global-shutter camera in a compact, ~1.45 kg payload. Paired with LP360 Drone, TV539 streamlines acquisition, QC, and deliverables without compromising on accuracy.
Introducing TV539
Built on lessons from the TrueView 540, TV539 delivers the precision and flexibility professionals expect—at a more accessible price point. Expect confident vegetation penetration, consistent accuracies, and a workflow that scales from quick site checks to complex, multi-flight projects.
Why it fits professional survey workflows
- Engineering-grade results: system absolute accuracy typically ~2–5 cm (project, GNSS, and control dependent).
- High-fidelity LiDAR: up to 6 returns per pulse for detail through canopy and complex structures.
- True mapping camera: 26 MP full-frame global-shutter imagery for crisp colorization and planimetrics.
- Lightweight & versatile: ~1.45 kg payload integrates with most commercial UAVs; ~1.75–1.90 kg with accessories.
- Field-ready: operates from −20 °C to +50 °C for year-round deployments.
LiDAR + Imagery Collection
- Laser scanner: CHCNAV single-beam (1535 nm)
- Returns: up to 6
- Usable range: up to ~300 m on >20% reflectivity targets
- Pulse repetition rate: up to 500 kHz
- Sensor performance: ~5 mm precision; ~15 mm accuracy
Trajectory & Orientation
TV539 incorporates CHC’s PPK navigation with tightly coupled GNSS/INS to stabilize trajectories and support consistent absolute accuracies.
- Position: ~10–20 mm
- Attitude: ~0.006° roll/pitch; ~0.019° heading
LP360 Drone Workflow
Every TV539 includes LP360 Drone for processing your LiDAR and imagery. Expand capabilities with optional add-ons as project needs evolve.
- Core LP360 Drone: intuitive workflow; multi-flight import & processing; GIS-friendly interface; synchronized 2D/3D/profile viewers.
- Optional add-ons: Strip Align for Drone (automated cross-strip adjustment), Photo (fast ortho backdrops), 3D Accuracy (automated horizontal/vertical checks), and more.
Designed for Real-World Projects
- Consistent results across vegetation, corridors, and built environments.
- Compact form factor reduces integration effort on popular commercial UAVs.
- Accessory path (~1.75–1.90 kg with mounts/antennas) to match platform and mission requirements.
GeoCue TrueView 539 LiDAR Sensor Specifications
LiDAR Sensor
| Data collection | LiDAR + imagery |
| Laser scanner | CHCNAV single-beam laser scanner |
| Laser wavelength | 1535 nm |
| Returns (per pulse) | Up to 6 |
| Usable range | Up to 300 m on targets > 20% reflectivity |
| Pulse repetition rate | Up to 500 kHz |
| Scanner precision | 5 mm |
| Scanner accuracy | 15 mm |
GNSS/INS & Trajectory
| Positioning & orientation system | CHC GNSS/INS with PPK navigation |
| GNSS/INS position | ~10–20 mm |
| GNSS/INS attitude | ~0.006° roll/pitch; ~0.019° heading |
System Performance
| Absolute accuracy (typical) | ~2–5 cm (project-, GNSS-, and control-dependent) |
Camera
| Sensor | 26 MP full-frame global-shutter camera |
Environmental
| Operating temperature | −20 °C to +50 °C |
Physical
| Mass (payload only) | ~1.45 kg |
| Mass with accessories | ~1.75–1.90 kg (mount, antenna, cabling, etc.) |
Software & Workflow
| Processing software | LP360 Drone included |
| Optional add-ons | Strip Align for Drone; Photo; 3D Accuracy (available for purchase) |
- (1) TrueView 539 LiDAR payload
- (1) GNSS antenna
- (1) Sensor hard case
- (1) LP360 Drone processing software
- (1) Hardware & software support (1 year)
- (1) Training — 2 days at GeoCue’s Huntsville, AL office
The TrueView 539 is designed for flexible integration across professional UAV platforms. Common integrations include (examples):
- DJI
- Harris Aerial
- Inspired Flight
- Skyfront
- Freefly Systems
- WISPR Systems
- Xer Technologies
Note: Mount kits and availability vary by airframe and configuration. Contact Advexure for current options and lead times.
| NDAA compliant | No |
| Blue UAS (DIU) listed | No |
| Green UAS (AUVSI) certified | No |
