GeoCue TrueView 625 pairs the RIEGL miniVUX-1UAV with three 20 MP cameras to deliver dense, colorized point clouds. NDAA-compliant and upgradable for mobile mapping, TV625 uses Applanix APX-15 for precise trajectories and includes LP360 Drone with Strip Align and Photo for streamlined production

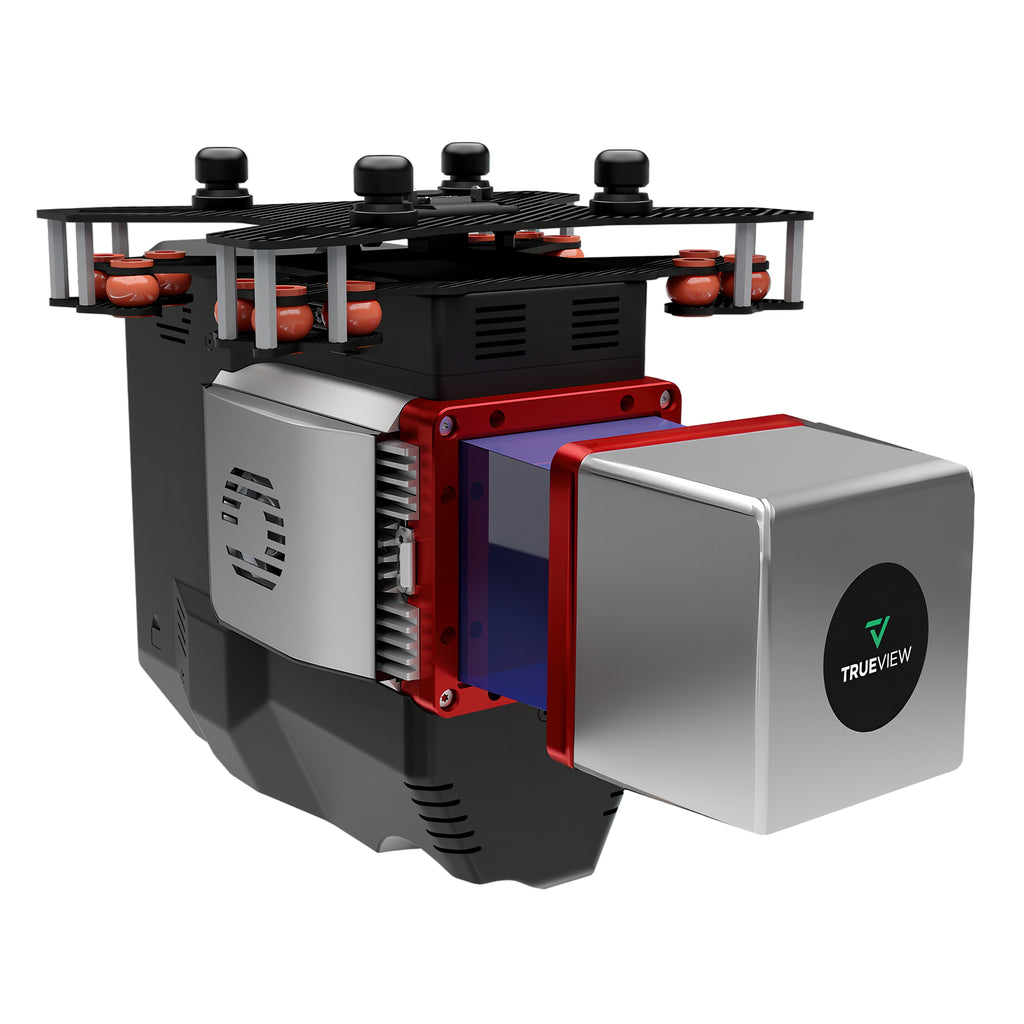

The GeoCue TrueView 625 (TV625) is a high-accuracy 3D imaging payload that pairs the RIEGL miniVUX-1UAV laser scanner with triple RGB cameras for dense, colorized point clouds. Built on the same architecture as the 655/660, TV625 adds mobile-mapping upgradability and NDAA compliance—delivering premium precision in a budget-conscious package.
TrueView 3D Imaging—LiDAR + Imagery
Collect survey-grade LiDAR and synchronized imagery in a single flight for efficient surfaces, features, and orthos.
- LiDAR engine: RIEGL miniVUX-1UAV with up to five returns per pulse and selectable pulse rates up to 100 kHz.
- Usable range: ~100 m on targets > 20% reflectivity.
- Scanner precision/accuracy: 10 mm precision; 15 mm accuracy (sensor level).
- System performance (typical): ~20 mm precision on a single strip (≤15 mm at 75 m on concrete); ~3 cm 3D RMSE typical (≤5 cm depending on GNSS/control).
Triple-camera imaging
Three Sony IMX-183, 1-inch, 20 MP RGB sensors (60 MP per payload) deliver clear colorization and planimetric context. Optional upgrades to higher-resolution cameras (e.g., Sony RX1R II or a7R) are available—ask sales for details.
Precision Trajectory with Applanix
TV625 uses the Applanix APX-15 for tightly-coupled GNSS/INS.
- Position: ~20–50 mm
- Attitude: ~0.025° roll/pitch; ~0.08° heading
NDAA-Compliant and Mobile-Mapping Ready
All 600-series payloads are NDAA-compliant and can be upgraded for dual-purpose drone and mobile mapping, extending your investment from airborne to vehicle workflows.
LP360 Drone Workflow Included
Streamline production with LP360 Drone, including Strip Align and Photo add-ons. Import multi-flight projects, visualize in synchronized 2D/3D/profile windows, perform automated strip adjustment, and generate fast ortho backdrops—without leaving the environment.
Featured Applications
- Rail inspection
- Wire extraction — distribution
- Road design
Payload & Integration
- Mass: ~2.44 kg (payload unit only; excludes battery, mount, antenna, power adapter)
- Platforms: Designed for flexible integration across professional UAVs; mobile-mapping upgrade available
The GeoCue TrueView 625 (TV625) is a high-accuracy 3D imaging payload that pairs the RIEGL miniVUX-1UAV laser scanner with triple RGB cameras for dense, colorized point clouds. Built on the same architecture as the 655/660, TV625 adds mobile-mapping upgradability and NDAA compliance—delivering premium precision in a budget-conscious package.
TrueView 3D Imaging—LiDAR + Imagery
Collect survey-grade LiDAR and synchronized imagery in a single flight for efficient surfaces, features, and orthos.
- LiDAR engine: RIEGL miniVUX-1UAV with up to five returns per pulse and selectable pulse rates up to 100 kHz.
- Usable range: ~100 m on targets > 20% reflectivity.
- Scanner precision/accuracy: 10 mm precision; 15 mm accuracy (sensor level).
- System performance (typical): ~20 mm precision on a single strip (≤15 mm at 75 m on concrete); ~3 cm 3D RMSE typical (≤5 cm depending on GNSS/control).
Triple-camera imaging
Three Sony IMX-183, 1-inch, 20 MP RGB sensors (60 MP per payload) deliver clear colorization and planimetric context. Optional upgrades to higher-resolution cameras (e.g., Sony RX1R II or a7R) are available—ask sales for details.
Precision Trajectory with Applanix
TV625 uses the Applanix APX-15 for tightly-coupled GNSS/INS.
- Position: ~20–50 mm
- Attitude: ~0.025° roll/pitch; ~0.08° heading
NDAA-Compliant and Mobile-Mapping Ready
All 600-series payloads are NDAA-compliant and can be upgraded for dual-purpose drone and mobile mapping, extending your investment from airborne to vehicle workflows.
LP360 Drone Workflow Included
Streamline production with LP360 Drone, including Strip Align and Photo add-ons. Import multi-flight projects, visualize in synchronized 2D/3D/profile windows, perform automated strip adjustment, and generate fast ortho backdrops—without leaving the environment.
Featured Applications
- Rail inspection
- Wire extraction — distribution
- Road design
Payload & Integration
- Mass: ~2.44 kg (payload unit only; excludes battery, mount, antenna, power adapter)
- Platforms: Designed for flexible integration across professional UAVs; mobile-mapping upgrade available
GeoCue TrueView 625 LiDAR Sensor Specifications
LiDAR Sensor
| Scanner | RIEGL miniVUX-1UAV |
| Number of lasers | 1 |
| Returns (per pulse) | Up to 5 |
| Total pulse rate | Up to 100 kHz (selectable) |
| Rotation speed | 30–100 Hz |
| Usable range | ~100 m on targets >20% reflectivity (project dependent) |
| Range (extended) | PRR-dependent; typical ~170 m on 20% targets; up to ~330 m in favorable conditions |
| Beam spot size @ 100 m | ~160 mm × 50 mm |
| Sensor precision / accuracy | Precision ~10 mm (1 sigma); accuracy ~15 mm |
System Performance
| Single-strip precision | Typical ~20 mm; <=15 mm (1 sigma) observed at 75 m on concrete |
| 3D absolute accuracy | Typical ~3 cm RMSE; <=5 cm 3D RMSE (GNSS/control dependent) |
Position & Orientation
| INS / POS | Trimble Applanix APX-15 EI |
| Post-processing options | Single Base; PP-RTX (no base, fast convergence); SmartBase |
| PPK performance | 0.03–0.05 m RMSE |
| GNSS/INS performance | Position: ~20–50 mm; Attitude: ~0.025° roll/pitch, ~0.08° heading |
Cameras
| Configuration | 3 × Sony IMX-183, 1", 20 MP RGB (60 MP per payload) |
| Shutter | Mechanical leaf, calibrated |
| Motion blur | ~0.37 pixel @ 5 m/s @ 80 m |
| FOV configuration | ~113° |
| Optional upgrades | Sony RX1R II or Sony a7R (consult sales) |
System
| Control | Wi-Fi + button control |
| Storage | 128 GB internal + 32 GB external |
Platform
| Size (L × W × H) | ~320 mm × 185 mm × 216 mm |
| Mass | ~2.44 kg (payload only); ~2.69 kg with accessories |
| Power consumption | ~51.1 W typical; ~63.9 W peak |
| Operating voltage | 12–34 V |
| Operating temperature | -10°C to +40°C |
| NDAA compliant | Yes (600-series) |
Processing Modules
| LP360 Drone (included) | Processing environment with Strip Align and Photo add-ons included |
| LP360 Cloud (optional) | Access; Store & Share; Starter; Stream & View Data; Power Search; Automatic Ground Classification |
| Optional add-ons | Business Intelligence; Unlimited Project; Metashape Console |
(1) TrueView 625 3D LiDAR payload
(1) GNSS antenna
(1) USB thumb drive
(1) Sensor hard case
(1) LP360 Drone processing software (1 year) — includes Strip Align and Photo add-ons
(1) Hardware & software support (1 year)
(1) Training — 2 days at GeoCue’s Huntsville, AL office
Mount kits for the GeoCue TrueView 625 are available for the following UAV platforms (examples):
- DJI Matrice 300 RTK / Matrice 350 RTK
- Inspired Flight IF1200 / IF1200A
- Inspired Flight IF800 Tomcat
- Freefly Systems ALTA X
- Freefly Systems Astro Max
- Skyfront Perimeter 8
- Harris Aerial H6
- WISPR Systems SkyScout
- Xer Technologies (model-specific)
| NDAA compliant | Yes (600-series) |
| Blue UAS (DIU) listed | No |
| Green UAS (AUVSI) certified | No |
