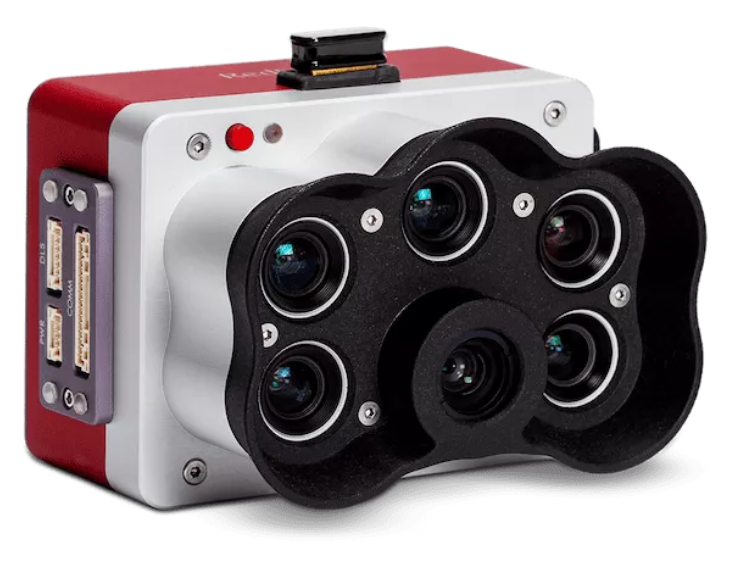

MicaSense RedEdge-P Multispectral Sensor Kit with DJI Skyport

MicaSense SKU: MS-REP-MK

Drone Model: Multispectral Kit without DJI Skyport
Price:
$7,995
+ FREE SHIPPING
Stock:
Available on Backorder

The RedEdge-P is the rugged, high-quality, powerful multispectral sensor you’ve come to trust, now with a high-resolution panchromatic band for pan-sharpened output resolutions of 2cm (at 60m) - twice the ground resolution of the industry-standard RedEdge-MX. It is a single camera solution that captures calibrated high-resolution multispectral and RGB imagery, with an optimized FOV and capture rate for efficient flights. This solution seamlessly integrates a high-resolution all-color imager with synchronized multispectral imagers to enable pixel-aligned outputs at previously unattainable resolutions while maintaining the efficiency and reliability of the RedEdge legacy. Raw data from RedEdge-P is open for processing using the standard household softwares in the industry.

The RedEdge-P is the rugged, high-quality, powerful multispectral sensor you’ve come to trust, now with a high-resolution panchromatic band for pan-sharpened output resolutions of 2cm (at 60m) - twice the ground resolution of the industry-standard RedEdge-MX. It is a single camera solution that captures calibrated high-resolution multispectral and RGB imagery, with an optimized FOV and capture rate for efficient flights. This solution seamlessly integrates a high-resolution all-color imager with synchronized multispectral imagers to enable pixel-aligned outputs at previously unattainable resolutions while maintaining the efficiency and reliability of the RedEdge legacy. Raw data from RedEdge-P is open for processing using the standard household softwares in the industry.

MicaSense RedEdge-P Specs

Weight 300g (10.6 oz.) RedEdge-P + DLS 2
Dimensions 8.2 x 6.2 x 5.4 cm (3.2in x 2.4in x 2.1in)
External Power 7.0 V - 25.2 V
Spectral Bands Blue, green, red, red edge, near-IR (global shutter, narrowband)
Wavelength (nm) Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27 nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12 nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)
RGB Output 5.1 MP (global shutter, aligned with all bands)*
Ground Sample Distance
  • 7.7cm per pixel (per MS band) at 120m AGL
  • 3.98cm per pixel (panchromatic band) at 120m AGL
Capture Rate 2-3 captures per second raw DNG
Interfaces 4 GPIO: Trigger input, top of frame out, 1 PPS out, host button. USB 2.0 port for WiFi, serial, 10/100/1000 ethernet, and CF Express Storage.
Field of View
  • 49.6° HFOV x 38.3° VFOV (MS)
  • 44.5° HFOV x 37.7° VFOV (PAN)
Triggering Options Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial and Ethernet options), manual capture mode
Heat 0-40C ambient (no airflow); 0-50C ambient with airflow >0.5m/s

Note: Specifications are subject to change without notice

(1) RedEdge-P Camera
(1) DLS 2
(1) Hard Carrying Case
CRP2 and Mounting Accessories for Matrice 200, 210, or 300

MicaSense RedEdge-P Compatibility

DJI Matrice 300 Series
DJI Matrice 350 RTK
DJI Matrice 200 Series
