The ACSL SOTEN Inspection Bundle Plus delivers a secure, NDAA-compliant platform with the TAITEN Smart Controller, dual-band connectivity, and the CX-GB100 20MP camera. Compact, foldable, and IP43-rated, it provides reliable performance and AES-256 encrypted links, making it ideal for inspections, compliance checks, and infrastructure monitoring in demanding environments.
The ACSL SOTEN Inspection Bundle Plus combines Japan’s secure, NDAA-compliant small UAS platform with the next-generation TAITEN Smart Controller, delivering a reliable and field-ready solution for critical inspection missions. Compact and foldable, the SOTEN integrates an IP43-rated airframe, a one-touch swappable camera system, and dual-band 2.4 GHz + 5.8 GHz connectivity for dependable operations across complex industrial and urban environments.
Designed for inspection teams across utilities and critical infrastructure, the Inspection Bundle Plus includes the 20MP CX-GB100 camera for detailed visual documentation, extended endurance with five smart batteries, and a rugged transport case for secure deployment. With TAITEN’s daylight-bright integrated display, resilient AES-256 encrypted Fides-Link, and seamless ACSL TAKEOFF app integration, operators gain an efficient command center purpose-built for asset monitoring, compliance checks, and evidence collection.
- Dual-Band Aircraft Radios: 2.4 GHz and 5.8 GHz (previously 2.4 GHz-only) for resilient control and video.
- Made-in-Japan security: architecture designed around ISO/IEC 15408 principles with AES-256 encrypted links.
- One-touch Swappable payloads: standard 20 MP visible camera with swappable thermal (SAMO), multispectral, and optical-zoom options.I
- Included TAITEN Smart Controller: 7" 1500-nit display, faster compute, IP54 chassis, rich I/O, Android 13.
- Flexible ops: optional LTE connectivity and offline maps for remote areas and disconnected workflows.
- Team Workflows: pair up to three controllers to one aircraft for instructor/payload/handoff operations
TAITEN: Field-Ready Ground Control
See clearly, respond faster. TAITEN’s integrated 7" 1500-nit 1200×1920 panel stays readable in full sun, while a faster platform running ACSL TAKEOFF tightens the feedback loop for flight, gimbal, and camera inputs. The balanced chassis and up to 8-hour runtime (extendable via USB-C power) support long missions without juggling accessories.
- Links & Security: ACSL Fides-Link with AES-256 encryption. Dual-band 2.4 GHz + 5.8 GHz. Unobstructed 6+ mile* operating range where permitted.
- I/O for the Real World: HDMI video out, USB-C, USB-A 2.0, microSD, Ethernet, 3.5 mm, tripod mount.
- Sensors & UX: GNSS module, ambient light sensor (auto-brightness), microphone, link/battery LEDs, vibration motor.
- Multi-Operator: pair up to 3 controllers per aircraft for training or dedicated payload operation.
Operate Anywhere
Protected by made-in-Japan secure drone technology
Security measures based on ISO15408* are applied to prevent data leakage and extraction and to provide resistance to hijacking.
Major parts of the aircraft are either domestically produced or procured from highly reliable overseas sources. Security is enhanced with encrypted communications. Acquired data can optionally be encrypted and managed in the Japanese cloud.
*International Standard for Computer Security
One-Touch-Swappable Camera
ACSL SOTEN employs a swappable camera system, a first for a small aerial photography drone, enabling a wide array of camera options.
- Standard 20 MP Visible: 1"-class imaging with mechanical shutter for mapping and inspection clarity.
- SAMO Thermal: NDAA-compliant EO/IR for search, utilities, and night operations.
- Mission-specific: swap to multispectral or optical-zoom modules in seconds with the one-touch mount.
Extensive Scalability, including Closed Network LTE Communication and Offline Maps
With the use of LTE communications, SOTEN can be controlled over the internet, enabling autonomous beyond-visual-line-of-sight (level-3) operations in remote areas such as mountainous terrain and inside industrial plants.
The use of offline maps allows the ground control software application to display maps and manage autonomous flight, even in environments where internet access is not available.
An adapter for mounting the camera on the top of the drone, enabling the inspection of infrastructure from below, is currently under development.
Optional LTE enables remote tele-ops and situational awareness in hard-to-reach areas, while offline maps keep planning and autonomy available when coverage drops. The compact, folding airframe travels easily and is built for field conditions.
*Range varies with regulations, environment, interference, and antenna orientation.
Safe & Capable Flight Performance
With a maximum airspeed of 15 m/s, SOTEN is capable of safe flight in severe conditions, such as natural disasters.
SOTEN is also equipped with SLAS/SBAS (sub-meter positioning augmentation from the Michibiki quasi-zenith satellite system), which can provide more accurate positioning information in Japan, enabling safer takeoff and landing in situations where accurate positioning information is required, such as disaster response.
The ACSL SOTEN Inspection Bundle Plus combines Japan’s secure, NDAA-compliant small UAS platform with the next-generation TAITEN Smart Controller, delivering a reliable and field-ready solution for critical inspection missions. Compact and foldable, the SOTEN integrates an IP43-rated airframe, a one-touch swappable camera system, and dual-band 2.4 GHz + 5.8 GHz connectivity for dependable operations across complex industrial and urban environments.
Designed for inspection teams across utilities and critical infrastructure, the Inspection Bundle Plus includes the 20MP CX-GB100 camera for detailed visual documentation, extended endurance with five smart batteries, and a rugged transport case for secure deployment. With TAITEN’s daylight-bright integrated display, resilient AES-256 encrypted Fides-Link, and seamless ACSL TAKEOFF app integration, operators gain an efficient command center purpose-built for asset monitoring, compliance checks, and evidence collection.
- Dual-Band Aircraft Radios: 2.4 GHz and 5.8 GHz (previously 2.4 GHz-only) for resilient control and video.
- Made-in-Japan security: architecture designed around ISO/IEC 15408 principles with AES-256 encrypted links.
- One-touch Swappable payloads: standard 20 MP visible camera with swappable thermal (SAMO), multispectral, and optical-zoom options.I
- Included TAITEN Smart Controller: 7" 1500-nit display, faster compute, IP54 chassis, rich I/O, Android 13.
- Flexible ops: optional LTE connectivity and offline maps for remote areas and disconnected workflows.
- Team Workflows: pair up to three controllers to one aircraft for instructor/payload/handoff operations
TAITEN: Field-Ready Ground Control
See clearly, respond faster. TAITEN’s integrated 7" 1500-nit 1200×1920 panel stays readable in full sun, while a faster platform running ACSL TAKEOFF tightens the feedback loop for flight, gimbal, and camera inputs. The balanced chassis and up to 8-hour runtime (extendable via USB-C power) support long missions without juggling accessories.
- Links & Security: ACSL Fides-Link with AES-256 encryption. Dual-band 2.4 GHz + 5.8 GHz. Unobstructed 6+ mile* operating range where permitted.
- I/O for the Real World: HDMI video out, USB-C, USB-A 2.0, microSD, Ethernet, 3.5 mm, tripod mount.
- Sensors & UX: GNSS module, ambient light sensor (auto-brightness), microphone, link/battery LEDs, vibration motor.
- Multi-Operator: pair up to 3 controllers per aircraft for training or dedicated payload operation.
Operate Anywhere
Protected by made-in-Japan secure drone technology
Security measures based on ISO15408* are applied to prevent data leakage and extraction and to provide resistance to hijacking.
Major parts of the aircraft are either domestically produced or procured from highly reliable overseas sources. Security is enhanced with encrypted communications. Acquired data can optionally be encrypted and managed in the Japanese cloud.
*International Standard for Computer Security
One-Touch-Swappable Camera
ACSL SOTEN employs a swappable camera system, a first for a small aerial photography drone, enabling a wide array of camera options.
- Standard 20 MP Visible: 1"-class imaging with mechanical shutter for mapping and inspection clarity.
- SAMO Thermal: NDAA-compliant EO/IR for search, utilities, and night operations.
- Mission-specific: swap to multispectral or optical-zoom modules in seconds with the one-touch mount.
Extensive Scalability, including Closed Network LTE Communication and Offline Maps
With the use of LTE communications, SOTEN can be controlled over the internet, enabling autonomous beyond-visual-line-of-sight (level-3) operations in remote areas such as mountainous terrain and inside industrial plants.
The use of offline maps allows the ground control software application to display maps and manage autonomous flight, even in environments where internet access is not available.
An adapter for mounting the camera on the top of the drone, enabling the inspection of infrastructure from below, is currently under development.
Optional LTE enables remote tele-ops and situational awareness in hard-to-reach areas, while offline maps keep planning and autonomy available when coverage drops. The compact, folding airframe travels easily and is built for field conditions.
*Range varies with regulations, environment, interference, and antenna orientation.
Safe & Capable Flight Performance
With a maximum airspeed of 15 m/s, SOTEN is capable of safe flight in severe conditions, such as natural disasters.
SOTEN is also equipped with SLAS/SBAS (sub-meter positioning augmentation from the Michibiki quasi-zenith satellite system), which can provide more accurate positioning information in Japan, enabling safer takeoff and landing in situations where accurate positioning information is required, such as disaster response.
ACSL SOTEN Specifications
Aircraft
| Dimensions | Unfolded: 637 mm × 560 mm (including propellers) Folded: 162 mm × 363 mm |
| Height | Unfolded: 153 mm (including propellers) |
| Weight | 1,720 g (including standard camera and battery) |
| Number of rotor blades | 4 |
| Intelligent battery | Lithium-ion battery 94 Wh, 1 pc |
| Operating frequency (aircraft link) | Dual-band 2.4 GHz + 5.8 GHz |
| Hovering accuracy (vision positioning) | Vertical: ±0.1 m Horizontal: ±0.3 m |
| Hovering accuracy (GNSS) | Vertical: ±0.5 m, Horizontal: ±1.5 m |
| Maximum pitch angle | 30° |
| Maximum angular velocity | Pitch: 80°/s, Yaw: 45°/s |
| Maximum ascent speed | 3 m/s |
| Maximum descent speed | 2 m/s |
| Maximum takeoff weight | 2,000 g |
| Maximum speed (no wind) | 15 m/s |
| Operational limit altitude | 2,000 m |
| Max flight time | With standard camera, wind 8 m/s: 25 min Without standard camera, wind 8 m/s: 29 min |
| Optional cameras | Infrared + visible (EO/IR) Multispectral Optical zoom |
| Ingress protection | IP43 (with camera, gimbal, and battery) |
| GNSS | GPS + QZSS + GLONASS + SLAS |
| Operating temperature | 0 °C to 40 °C |
| Optional items | LTE Comms Module Spare Battery |
Vision System
| Obstacle detection range | Forward: 10 m, Up: 5 m, Down: 5 m |
| Obstacle detection angle | 70° horizontal, 40° vertical |
| Obstacle detection freq. | Forward: 10 Hz, Up: 10 Hz, Down: 10 Hz |
| Operating environment | Adequate lighting and clear texture |
Infrared Sensor
| Obstacle detection range | Up: 2 m, Down: 12 m |
| Obstacle detection angle | Up: 27°, Down: 2° |
| Obstacle detection freq. | Up: 50 Hz, Down: 50 Hz |
| Operating environment | Large, diffuse, or reflective obstacles |
TAITEN Smart Controller
| Display | 7 in integrated panel, 1200 × 1920 resolution, 1500 nits brightness |
| Operating bands (link) | Dual-band 2.4 GHz + 5.8 GHz (ACSL Fides-Link) |
| Range* | 6+ miles unobstructed in low-interference environments (where permitted) |
| Wireless | Wi-Fi |
| Encryption | AES-256 |
| Pairing | Up to 3 controllers per aircraft (instructor/payload/handoff) |
| Runtime & power | Up to 8 hours; USB-C power/charging |
| Environmental | IP54; Operating temp: 20–60 °C (68–140 °F); Storage: 20–50 °C (68–122 °F); Charging: 0–45 °C (32–113 °F) |
| Controls | 2-axis sticks; 2× gimbal wheels; 3-state mode switch (AUT/POS/MAN); Go-Home; Land; Emergency; Power |
| Customizable inputs | 3-state switch; 8 buttons; 2 wheels; 5-way hat |
| Indicators & sensors | Connection LED; Battery LED; Vibration motor; GNSS module; Light sensor (auto-brightness); Microphone |
| I/O | HDMI video out; USB-C; USB-A 2.0; microSD; Ethernet; 3.5 mm audio; Tripod mount |
| System | Android 13; ACSL TAKEOFF app (integrated); Remote ID compliant; NDAA compliant |
| Physical | Approx. 10.6 × 6.5 × 2.7 in; ≈3.2 lb |
*Range varies with regulations, environment, interference, and antenna orientation.
Visible Camera (Standard)
| Number of effective pixels | 20 megapixels |
| Still image shooting method | JPEG / DNG / JPEG+DNG |
| Still image quality | Compression: Superfine / Fine / Normal Resolution: 20 MP / 15 MP / 10 MP |
| Movie recording method | MOV / H.264 |
| Movie recording quality | 4K: 30 fps 2.7K: 60/30 fps Full HD: 120/60/30 fps HD: 60/30 fps nHD: 240/120/60/30 fps |
| Video recording time | Available recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (4 GB split on FAT32) |
| Sensor size | 1 inch |
| Shutter system | Mechanical shutter |
| Focus mode | Single AF / Continuous AF / MF; Area: Multi AF / Spot AF |
| Exposure compensation | −2 EV to +2 EV (1/3 EV steps) |
| Recording media | microSD — UHS speed class ≥ U3 or V30; Video class ≥ V30 |
| Security | On-media encryption available; toggle enable/disable |
Camera Gimbal
| Gimbal mechanism | 3-axis |
| Operable range | Pan: ±85° Tilt: −115° to 45° |
| Maximum speed | Pan: 60°/s Tilt & Roll: 100°/s |
| Control accuracy | ±0.02° |
| Switching method | One-touch camera switching |
Infrared camera + visible camera (optional accessory)
| Effective pixels | Visible camera: 12 megapixels Infrared camera: 81,920 pixels Temperature resolution: < 60 mK Dynamic range: up to +140 °C (high gain) |
| Still image method | Compression: Superfine / Fine / Normal |
| Video recording method | MOV / H.264 |
| Video recording quality | Full HD / HD |
| Video recording time | Available recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (4 GB split on FAT32) |
| Recording media | microSD — UHS speed class ≥ U3 or V30; Video class ≥ V30 |
| Security | Encrypted recording supported; toggle enable/disable |

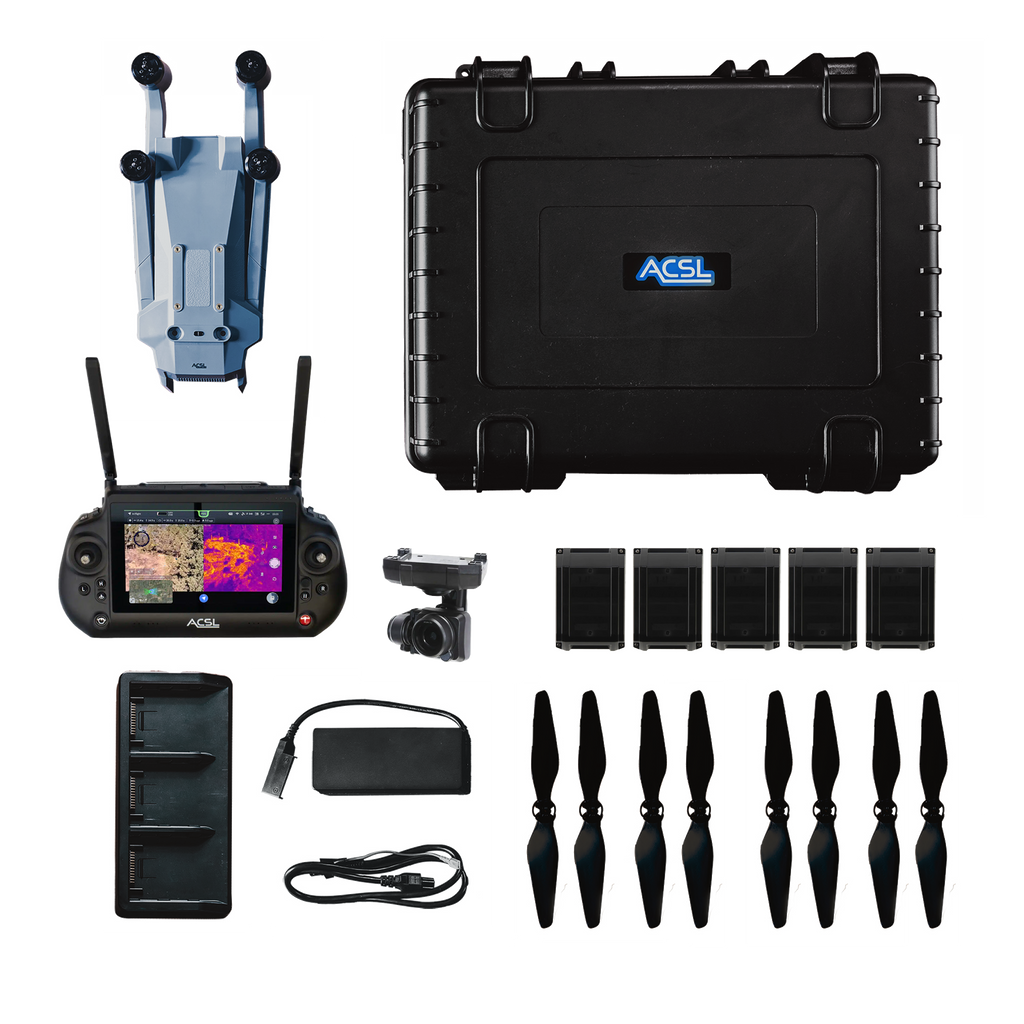

(1) SOTEN Aircraft
(1) TAITEN Smart Controller
(1) Battery Charger
(1) Multi-charger
(2) Propeller Set
(5) Smart Battery
(1) Standard 20MP Camera (CX-GB100)
(1) Hard Case
The Newest ACSL Mission Ready Combo
Introducing the ACSL SOTEN
Why is the made-in-Japan drone SOTEN highly secure?
- NDAA: Yes (aircraft and TAITEN controller)
- Remote ID: compliant
- DIU Blue UAS: Not currently listed
- Link Security: AES-256 encryption with ACSL Fides-Link dual-band (2.4 GHz + 5.8 GHz)
