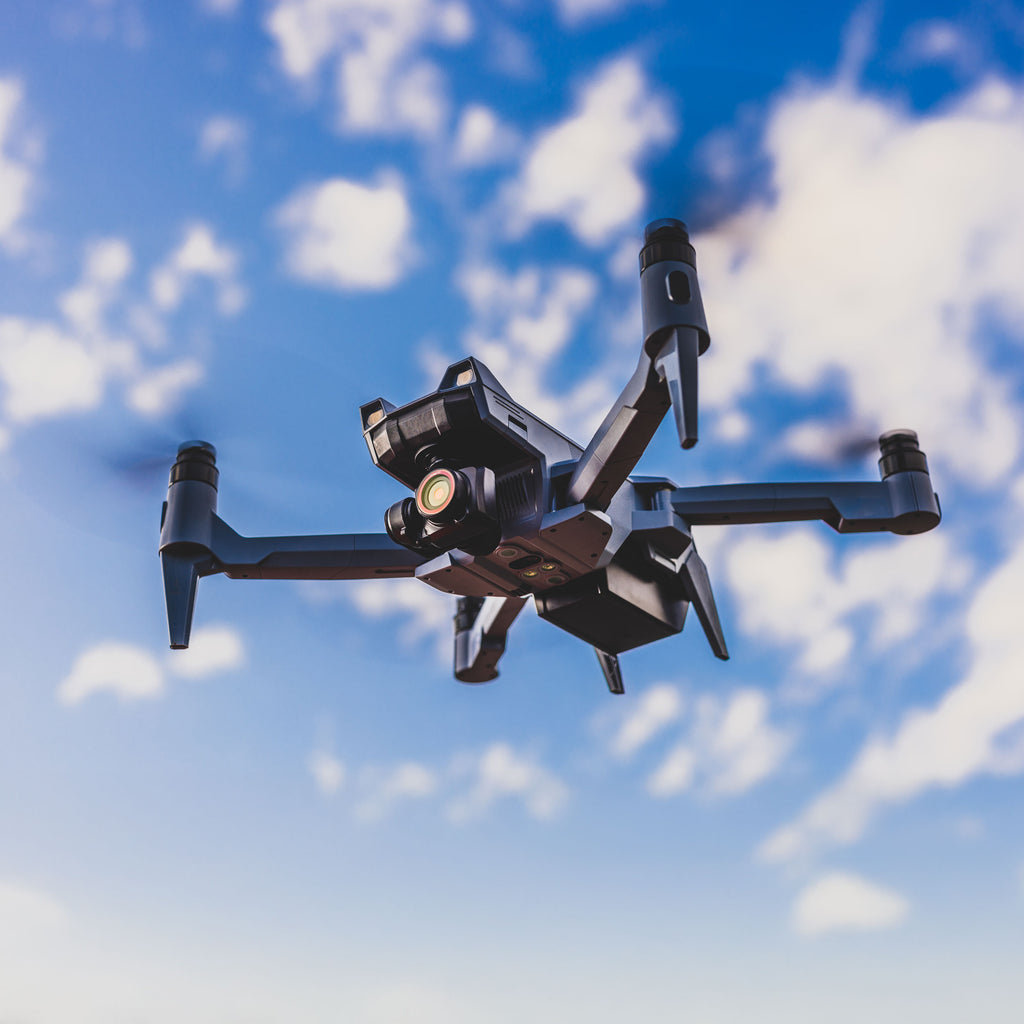

The new ACSL SOTEN Mission Bundle Plus elevates the NDAA-compliant platform with dual-band 2.4 GHz + 5.8 GHz connectivity and the inclusion of the TAITEN Smart Controller. Featuring a 7″ 1500-nit display, IP54 ruggedization, and AES-256 encryption. Lightweight, foldable, and featuring an IP43 rating, SOTEN is ideal for demanding missions. With a 25-minute flight time and intuitive operation, it's perfect for secure, efficient aerial tasks in challenging environments.
The ACSL SOTEN Mission Bundle Plus updates the SOTEN platform for real-world public safety, inspection, and utility work. The latest-generation airframe now uses dual-band 2.4 GHz + 5.8 GHz links for stronger performance in congested RF.
SOTEN: Secure, Swappable, Mission-Ready
- Dual-Band Aircraft Radios: 2.4 GHz and 5.8 GHz (previously 2.4 GHz-only) for resilient control and video.
- Made-in-Japan security: architecture designed around ISO/IEC 15408 principles with AES-256 encrypted links.
- One-touch Swappable payloads: standard 20 MP visible camera with swappable thermal (SAMO), multispectral, and optical-zoom options.I
- Included TAITEN Smart Controller: 7" 1500-nit display, faster compute, IP54 chassis, rich I/O, Android 13.
- Flexible ops: optional LTE connectivity and offline maps for remote areas and disconnected workflows.
- Team Workflows: pair up to three controllers to one aircraft for instructor/payload/handoff operations
Operate Anywhere
Protected by made-in-Japan secure drone technology
Security measures based on ISO15408* are applied to prevent data leakage and extraction and to provide resistance to hijacking.
Major parts of the aircraft are either domestically produced or procured from highly reliable overseas sources. Security is enhanced with encrypted communications. Acquired data can optionally be encrypted and managed in the Japanese cloud.
*International Standard for Computer Security
One-Touch-Swappable Camera
ACSL SOTEN employs a swappable camera system, a first for a small aerial photography drone, enabling a wide array of camera options.
- Standard 20 MP Visible: 1"-class imaging with mechanical shutter for mapping and inspection clarity.
- SAMO Thermal: NDAA-compliant EO/IR for search, utilities, and night operations.
- Mission-specific: swap to multispectral or optical-zoom modules in seconds with the one-touch mount.
Extensive Scalability, including Closed Network LTE Communication and Offline Maps
With the use of LTE communications, SOTEN can be controlled over the internet, enabling autonomous beyond-visual-line-of-sight (level-3) operations in remote areas such as mountainous terrain and inside industrial plants.
The use of offline maps allows the ground control software application to display maps and manage autonomous flight, even in environments where internet access is not available.
An adapter for mounting the camera on the top of the drone, enabling the inspection of infrastructure from below, is currently under development.
Optional LTE enables remote tele-ops and situational awareness in hard-to-reach areas, while offline maps keep planning and autonomy available when coverage drops. The compact, folding airframe travels easily and is built for field conditions.
*Range varies with regulations, environment, interference, and antenna orientation.
Safe & Capable Flight Performance
With a maximum airspeed of 15 m/s, SOTEN is capable of safe flight in severe conditions, such as natural disasters.
SOTEN is also equipped with SLAS/SBAS (sub-meter positioning augmentation from the Michibiki quasi-zenith satellite system), which can provide more accurate positioning information in Japan, enabling safer takeoff and landing in situations where accurate positioning information is required, such as disaster response.
The ACSL SOTEN Mission Bundle Plus updates the SOTEN platform for real-world public safety, inspection, and utility work. The latest-generation airframe now uses dual-band 2.4 GHz + 5.8 GHz links for stronger performance in congested RF.
SOTEN: Secure, Swappable, Mission-Ready
- Dual-Band Aircraft Radios: 2.4 GHz and 5.8 GHz (previously 2.4 GHz-only) for resilient control and video.
- Made-in-Japan security: architecture designed around ISO/IEC 15408 principles with AES-256 encrypted links.
- One-touch Swappable payloads: standard 20 MP visible camera with swappable thermal (SAMO), multispectral, and optical-zoom options.I
- Included TAITEN Smart Controller: 7" 1500-nit display, faster compute, IP54 chassis, rich I/O, Android 13.
- Flexible ops: optional LTE connectivity and offline maps for remote areas and disconnected workflows.
- Team Workflows: pair up to three controllers to one aircraft for instructor/payload/handoff operations
Operate Anywhere
Protected by made-in-Japan secure drone technology
Security measures based on ISO15408* are applied to prevent data leakage and extraction and to provide resistance to hijacking.
Major parts of the aircraft are either domestically produced or procured from highly reliable overseas sources. Security is enhanced with encrypted communications. Acquired data can optionally be encrypted and managed in the Japanese cloud.
*International Standard for Computer Security
One-Touch-Swappable Camera
ACSL SOTEN employs a swappable camera system, a first for a small aerial photography drone, enabling a wide array of camera options.
- Standard 20 MP Visible: 1"-class imaging with mechanical shutter for mapping and inspection clarity.
- SAMO Thermal: NDAA-compliant EO/IR for search, utilities, and night operations.
- Mission-specific: swap to multispectral or optical-zoom modules in seconds with the one-touch mount.
Extensive Scalability, including Closed Network LTE Communication and Offline Maps
With the use of LTE communications, SOTEN can be controlled over the internet, enabling autonomous beyond-visual-line-of-sight (level-3) operations in remote areas such as mountainous terrain and inside industrial plants.
The use of offline maps allows the ground control software application to display maps and manage autonomous flight, even in environments where internet access is not available.
An adapter for mounting the camera on the top of the drone, enabling the inspection of infrastructure from below, is currently under development.
Optional LTE enables remote tele-ops and situational awareness in hard-to-reach areas, while offline maps keep planning and autonomy available when coverage drops. The compact, folding airframe travels easily and is built for field conditions.
*Range varies with regulations, environment, interference, and antenna orientation.
Safe & Capable Flight Performance
With a maximum airspeed of 15 m/s, SOTEN is capable of safe flight in severe conditions, such as natural disasters.
SOTEN is also equipped with SLAS/SBAS (sub-meter positioning augmentation from the Michibiki quasi-zenith satellite system), which can provide more accurate positioning information in Japan, enabling safer takeoff and landing in situations where accurate positioning information is required, such as disaster response.
ACSL SOTEN Specifications
Aircraft
| Dimensions | Unfolded: 637 mm × 560 mm (including propellers) Folded: 162 mm × 363 mm |
| Height | Unfolded: 153 mm (including propellers) |
| Weight | 1,720 g (including standard camera and battery) |
| Number of rotor blades | 4 |
| Intelligent battery | Lithium-ion battery 94 Wh, 1 pc |
| Operating frequency (aircraft link) | Dual-band 2.4 GHz + 5.8 GHz |
| Hovering accuracy (vision positioning) | Vertical: ±0.1 m Horizontal: ±0.3 m |
| Hovering accuracy (GNSS) | Vertical: ±0.5 m, Horizontal: ±1.5 m |
| Maximum pitch angle | 30° |
| Maximum angular velocity | Pitch: 80°/s, Yaw: 45°/s |
| Maximum ascent speed | 3 m/s |
| Maximum descent speed | 2 m/s |
| Maximum takeoff weight | 2,000 g |
| Maximum speed (no wind) | 15 m/s |
| Operational limit altitude | 2,000 m |
| Max flight time | With standard camera, wind 8 m/s: 25 min Without standard camera, wind 8 m/s: 29 min |
| Optional cameras | Infrared + visible (EO/IR) Multispectral Optical zoom |
| Ingress protection | IP43 (with camera, gimbal, and battery) |
| GNSS | GPS + QZSS + GLONASS + SLAS |
| Operating temperature | 0 °C to 40 °C |
| Optional items | LTE Comms Module Spare Battery |
Vision System
| Obstacle detection range | Forward: 10 m, Up: 5 m, Down: 5 m |
| Obstacle detection angle | 70° horizontal, 40° vertical |
| Obstacle detection freq. | Forward: 10 Hz, Up: 10 Hz, Down: 10 Hz |
| Operating environment | Adequate lighting and clear texture |
Infrared Sensor
| Obstacle detection range | Up: 2 m, Down: 12 m |
| Obstacle detection angle | Up: 27°, Down: 2° |
| Obstacle detection freq. | Up: 50 Hz, Down: 50 Hz |
| Operating environment | Large, diffuse, or reflective obstacles |
Visible Camera (Standard)
| Number of effective pixels | 20 megapixels |
| Still image shooting method | JPEG / DNG / JPEG+DNG |
| Still image quality | Compression: Superfine / Fine / Normal Resolution: 20 MP / 15 MP / 10 MP |
| Movie recording method | MOV / H.264 |
| Movie recording quality | 4K: 30 fps 2.7K: 60/30 fps Full HD: 120/60/30 fps HD: 60/30 fps nHD: 240/120/60/30 fps |
| Video recording time | Available recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (4 GB split on FAT32) |
| Sensor size | 1 inch |
| Shutter system | Mechanical shutter |
| Focus mode | Single AF / Continuous AF / MF; Area: Multi AF / Spot AF |
| Exposure compensation | −2 EV to +2 EV (1/3 EV steps) |
| Recording media | microSD — UHS speed class ≥ U3 or V30; Video class ≥ V30 |
| Security | On-media encryption available; toggle enable/disable |
Camera Gimbal
| Gimbal mechanism | 3-axis |
| Operable range | Pan: ±85° Tilt: −115° to 45° |
| Maximum speed | Pan: 60°/s Tilt & Roll: 100°/s |
| Control accuracy | ±0.02° |
| Switching method | One-touch camera switching |
Infrared camera + visible camera (optional accessory)
| Effective pixels | Visible camera: 12 megapixels Infrared camera: 81,920 pixels Temperature resolution: < 60 mK Dynamic range: up to +140 °C (high gain) |
| Still image method | Compression: Superfine / Fine / Normal |
| Video recording method | MOV / H.264 |
| Video recording quality | Full HD / HD |
| Video recording time | Available recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (4 GB split on FAT32) |
| Recording media | microSD — UHS speed class ≥ U3 or V30; Video class ≥ V30 |
| Security | Encrypted recording supported; toggle enable/disable |
(1) SOTEN Aircraft
(1) Standard Controller
(1) Battery Charger
(1) Multi-charger
(2) Propeller Set
(5) Smart Battery
(1) Standard 20MP Camera (CX-GB100)
(1) Hard Case
The Newest ACSL Mission Ready Combo
Introducing the ACSL SOTEN
Why is the made-in-Japan drone SOTEN highly secure?
- NDAA: Yes, with the addition of the TAITEN controller.
- Remote ID: compliant
- DIU Blue UAS: Not currently listed
