20,200mAh XLR battery for ANAFI UKR GOV and XLR, with up to 70-minute flight time and approximately 5-hour full charging. Requires XLR Battery Interface, sold separately. No third-party attachments or mounts.

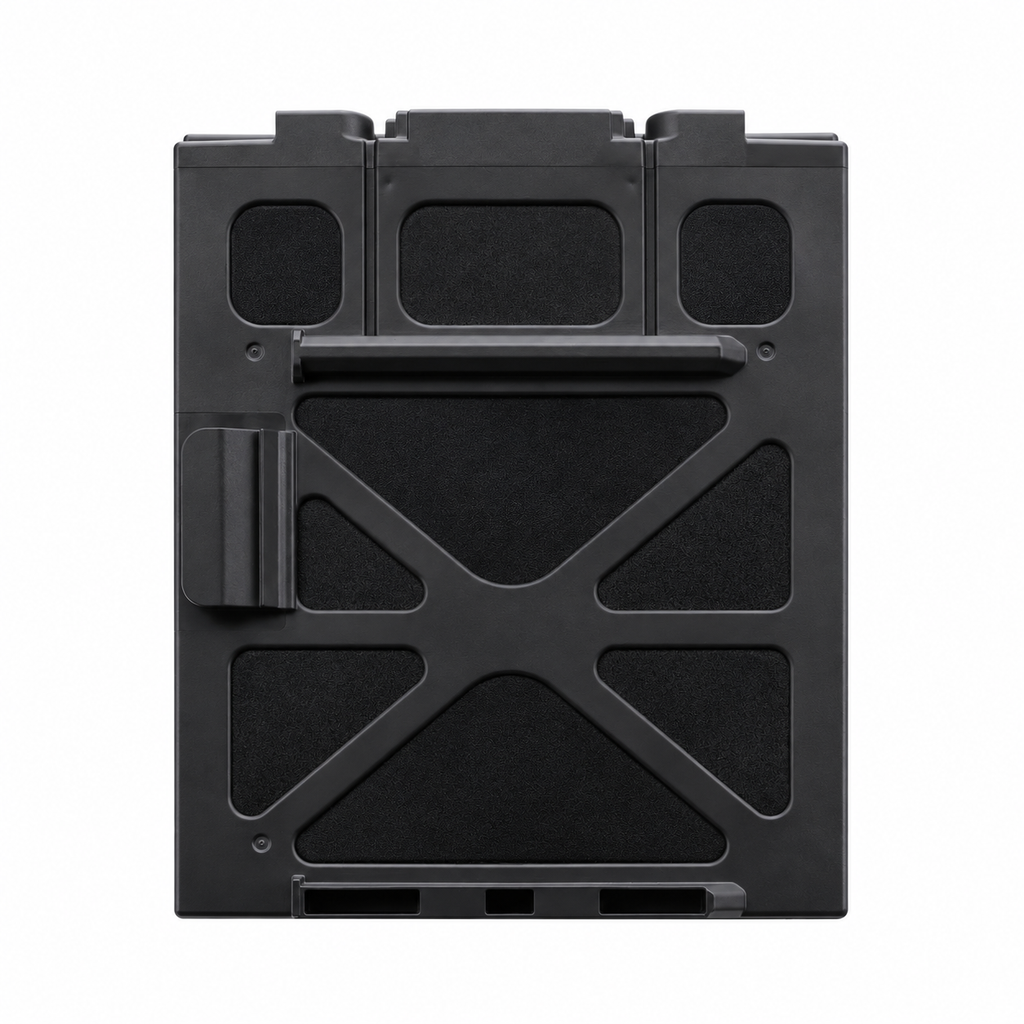

Parrot ANAFI UKR XLR Battery
Extend time in the air with the Parrot ANAFI UKR XLR Battery, a 20,200mAh smart Li-ion battery for ANAFI UKR GOV and ANAFI UKR XLR aircraft. Parrot rates the XLR configuration for up to 70 minutes of flight time at 6.5 m/s, helping teams plan longer observation periods with fewer battery changes.
An additional XLR battery lets crews prepare a charged replacement while another battery is in use. Consider the number of flights, charging time, and access to field power when sizing your battery rotation.
Key Features
- 20,200mAh capacity, 10.20V nominal voltage, and 206Wh energy
- High-density Li-ion construction
- Up to 70-minute rated flight endurance on compatible aircraft
- USB-C Power Delivery charging
- Approximately 5-hour full charge in current Parrot documentation
- Smart battery management and wintering mode
Required accessory: the XLR Battery Interface is required for use and sold separately. Do not use third-party attachments or mounts with the XLR battery in this configuration. The ANAFI UKR Standard Battery is recommended when planning a supported external accessory setup.
Parrot ANAFI UKR XLR Battery
Extend time in the air with the Parrot ANAFI UKR XLR Battery, a 20,200mAh smart Li-ion battery for ANAFI UKR GOV and ANAFI UKR XLR aircraft. Parrot rates the XLR configuration for up to 70 minutes of flight time at 6.5 m/s, helping teams plan longer observation periods with fewer battery changes.
An additional XLR battery lets crews prepare a charged replacement while another battery is in use. Consider the number of flights, charging time, and access to field power when sizing your battery rotation.
Key Features
- 20,200mAh capacity, 10.20V nominal voltage, and 206Wh energy
- High-density Li-ion construction
- Up to 70-minute rated flight endurance on compatible aircraft
- USB-C Power Delivery charging
- Approximately 5-hour full charge in current Parrot documentation
- Smart battery management and wintering mode
Required accessory: the XLR Battery Interface is required for use and sold separately. Do not use third-party attachments or mounts with the XLR battery in this configuration. The ANAFI UKR Standard Battery is recommended when planning a supported external accessory setup.
XLR Battery Specifications
| Battery type | High-density Li-ion |
|---|---|
| Capacity | 20,200 mAh |
| Nominal voltage | 10.20 V |
| Energy | 206 Wh |
| Energy density | 300 Wh/kg |
| Maximum rated flight time | 70 min at 6.5 m/s airspeed |
| Charging connection | USB-C, USB Power Delivery |
| Maximum charging power | 70 W, per current Parrot user guide |
| Approximate full charge | 5 hr with the pack's USB-PD charger when charging one device |
| Dimensions | 156 × 105 × 49 mm (6.14 × 4.13 × 1.93 in) |
| Weight | 686 g (1.51 lb) |
| Required interface | ANAFI UKR XLR Battery Interface, sold separately |
Specifications use Parrot's current technical page and GOV user guide v8.4.3.0. The earlier XLR data sheet lists 5 hr 15 min charging at 45W. Charge time depends on the charger, shared output, temperature, and battery condition. Flight-time figures are maximum manufacturer ratings.
Compatible Aircraft
- Parrot ANAFI UKR GOV
- Parrot ANAFI UKR XLR
The XLR battery requires the correct XLR Battery Interface. This battery is not a universal upgrade for every ANAFI UKR variant; Parrot limits compatibility to the GOV and XLR versions. Confirm the aircraft configuration when adding batteries to an existing fleet.
Installation and Transport
The XLR battery changes the aircraft's weight and physical configuration. Remove it before folding the drone. Do not combine this battery with third-party attachments or mounts in the listed configuration.
Charging Equipment
Charge through the battery's USB-C port using a compatible USB-PD charger. The optional CDC ANAFI UKR/XLR rapid charger case supports XLR charging with separately purchased XLR charging adapters. These charger adapters are distinct from the aircraft's XLR Battery Interface.
- 1 × Parrot ANAFI UKR XLR Battery
XLR Battery Interface, charger, charging adapters, and aircraft are sold separately. An existing GOV aircraft package may already include its installation interface; verify what is in your current kit.
XLR Battery or Standard Battery?
The XLR battery prioritizes longer endurance. The Standard Battery offers lower weight, a shorter charging time, and the configuration to consider for compatible third-party accessories.
| Specification | Standard Battery | XLR Battery |
|---|---|---|
| Rated maximum flight time | 38 min at 6 m/s | 70 min at 6.5 m/s |
| Capacity | 6,800 mAh | 20,200 mAh |
| Chemistry | LiPo | Li-ion |
| Nominal voltage | 11.55 V | 10.20 V |
| Energy | 78.5 Wh | 206 Wh |
| Battery mass | 354 g | 686 g |
| Approximate full charge | 2 hr 30 min | 5 hr |
| Fit requirements | Standard adapter required on GOV, XLR and specified UKR revisions | XLR Battery Interface required; GOV and XLR aircraft only |
Manufacturer ratings vary with aircraft configuration, firmware, charger, and operating conditions. Full-charge figures refer to compatible USB-PD charging; charging multiple devices can extend charge time.
Does the XLR battery include the required interface?
No. The XLR Battery Interface is required and sold separately from this battery.
How long can I fly with the XLR battery?
Parrot specifies up to 70 minutes at 6.5 m/s on a compatible aircraft. Actual endurance depends on speed, wind, temperature, battery condition, and aircraft configuration.
How long does a full charge take?
Approximately 5 hours with the compatible pack charger when charging one device, according to the current Parrot user guide. Earlier documentation quotes 5 hours 15 minutes. Shared charger output or lower charging power can extend the time.
Can I use it with any ANAFI UKR drone?
No. Parrot specifies the XLR battery for ANAFI UKR GOV and ANAFI UKR XLR. Confirm the correct interface and aircraft version before use.
Can I fold the drone with this battery installed?
No. The XLR battery must be removed before folding the aircraft.
Can I attach a third-party payload or mount?
Do not use third-party attachments or mounts with the XLR battery in this configuration. Evaluate the Standard Battery and the accessory's installation requirements instead.
- Current ANAFI UKR User Guide: XLR Battery Installation (PDF)
- Current Parrot Technical Specifications
- Parrot XLR Battery Data Sheet (PDF, earlier charging specification)
Add battery rotation and field charging requirements to your Advexure quote so the aircraft, installation interface, and charging equipment are specified together.
