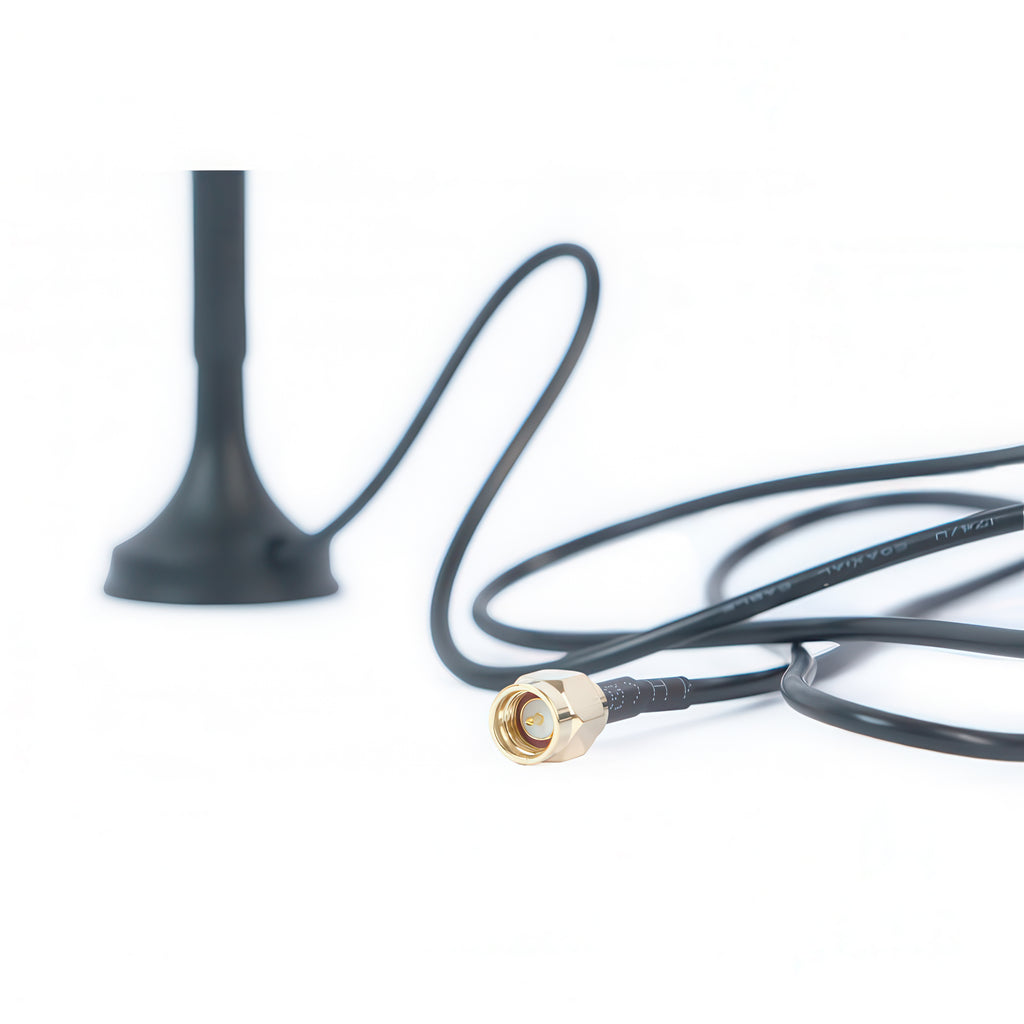

Dronetag 2.4 GHz Omnidirectional Magnetic Antenna with 1 m Cable (SMA) boosts Remote ID reception with a low-profile, ground-plane-independent design. Features a magnetic base rated to 87 mph (properly mounted), 1 m RG-174/U lead, SMA male connector, and 0.7 dBi gain. Compatible only with Dronetag RIDER.
Purpose-built for Remote ID on 2.4 GHz, this omnidirectional magnetic antenna pairs a low-profile form factor with dependable vehicle-mount flexibility. The 1 m (≈3.28 ft) RG-174/U coax and SMA male connector make it a clean, plug-and-play match for Dronetag RIDER, improving reception consistency while keeping installs simple.
Magnetic Mount, Road-Ready Hold
Drop it on a steel roof, rack, or panel and go—no tools required. When properly attached to a clean, flat ferromagnetic surface, the base resists wind loads up to ≈87 mph (140 km/h), ideal for mobile operations and quick deployments.
Important: Real-world performance depends on surface type/flatness, antenna orientation, and wind conditions. Use extra caution on moving vehicles and verify adhesion before each run.
Ground-Plane Independent Design
The radiator is engineered to maintain a stable radiation pattern without relying on the vehicle’s metal surface as a ground plane. That means more predictable coverage when mounting on roofs with varying geometries or where nearby structures could detune typical whip antennas.
Optimized for Remote ID on 2.4 GHz
Tuned for 2400–2500 MHz, the antenna supports Bluetooth® 4.0 Legacy & Bluetooth 5.0 Long Range plus Wi-Fi beaconing—exactly the signals used by Remote ID broadcasts. A VSWR ≤ 1.8 helps protect link budget and reduce mismatch loss, while the specified 0.7 dBi gain keeps the pattern broad for uniform, all-around pickup.
Connector & Cable—Built for Clean Installs

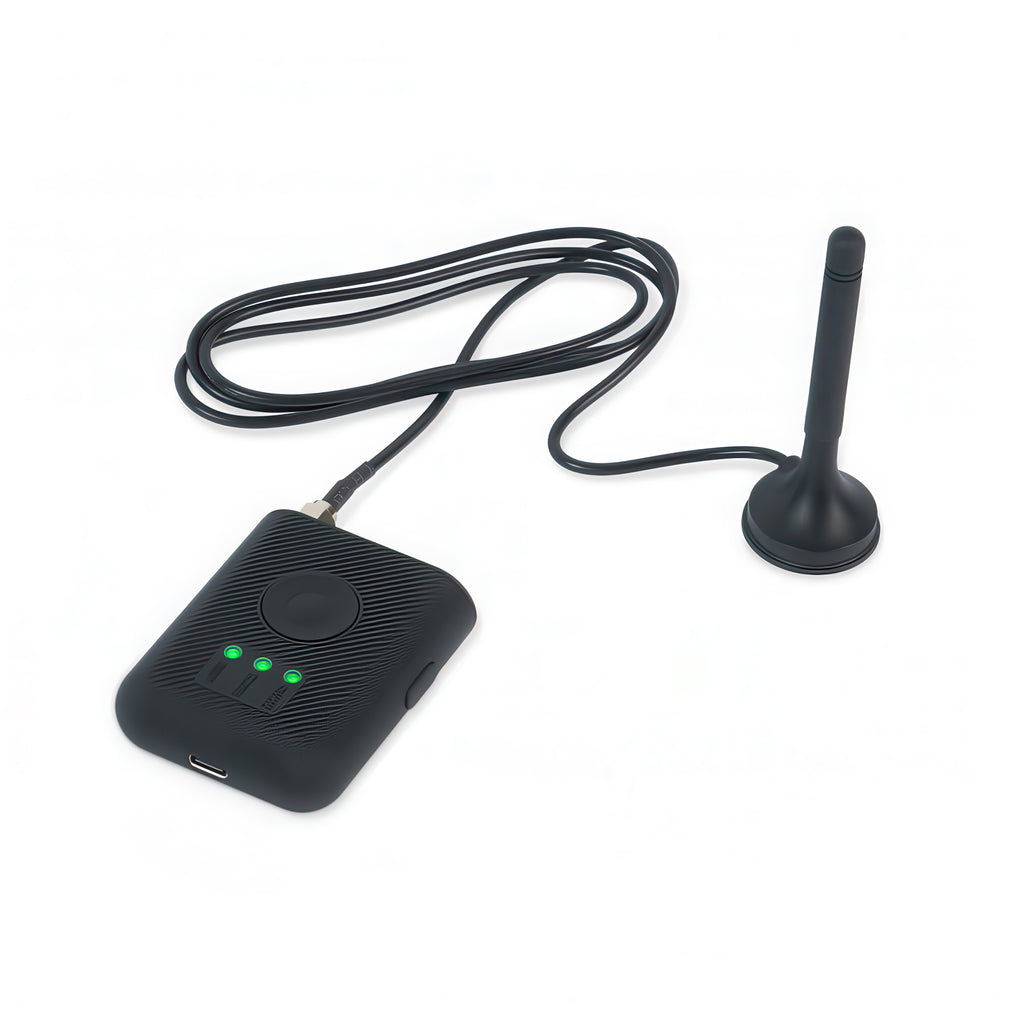

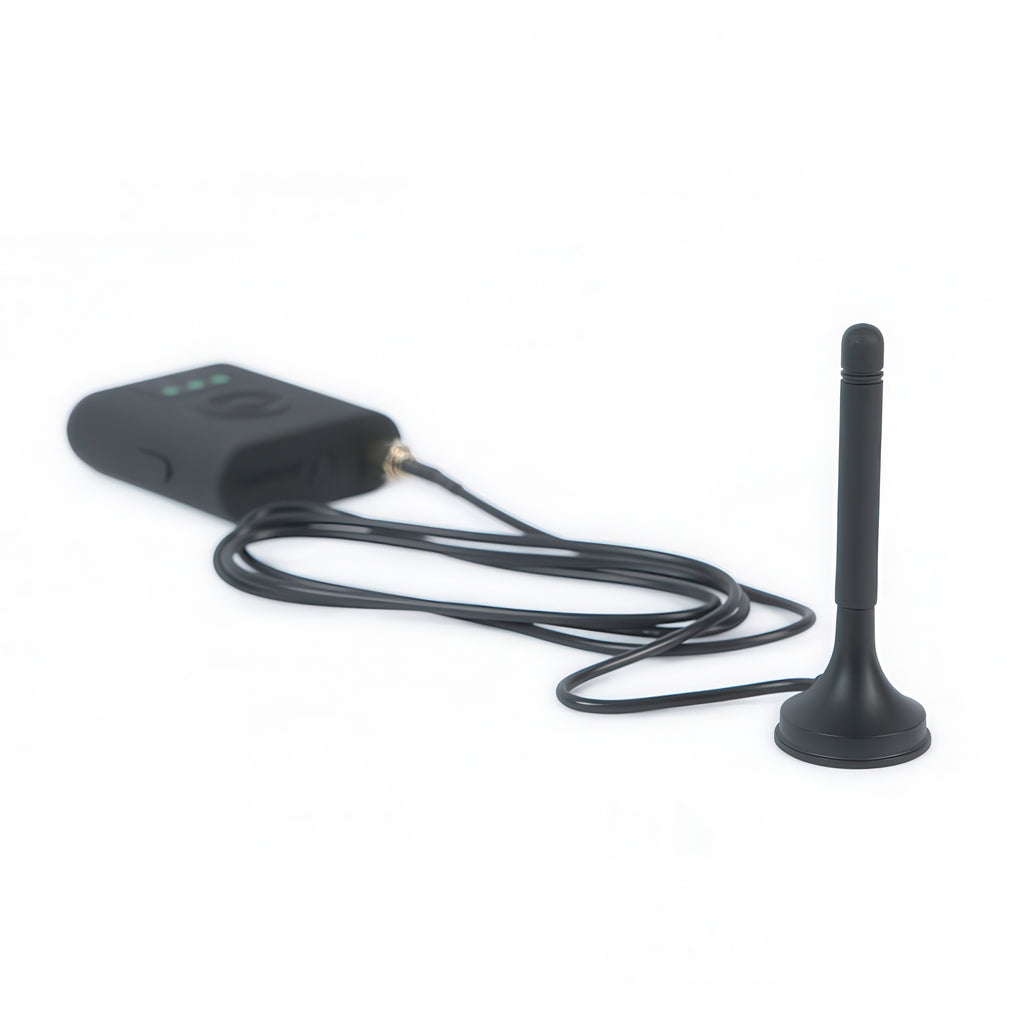

The factory-terminated SMA male connector mates directly with compatible ports, and the 1 m (≈3.28 ft) RG-174/U lead—just 2.8 mm (≈0.11 in) in diameter—routes easily through door seals or hatch gaps without pinching. This model is compatible only with Dronetag RIDER; verify device connector type before ordering.
Low-Profile, Lightweight Hardware

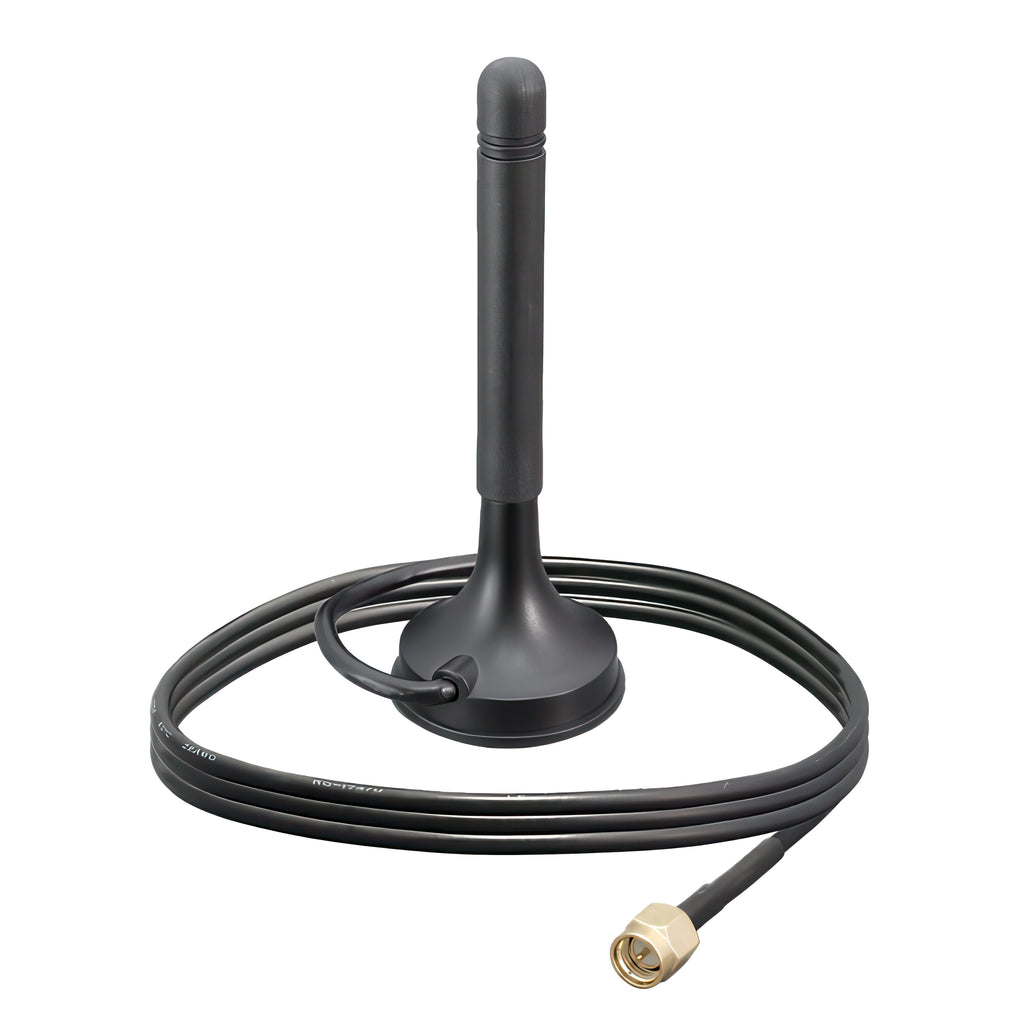

At just ≈3.26 in × Ø1.18 in (82.8 mm × Ø30.0 mm) and ≈1.02 oz (28.8 g), the antenna stays unobtrusive on vehicles and cabinets, minimizing snag points and wind loading during highway or on-site use.
All-Weather Operating Range
Rated for −4 °F to 176 °F (−20 °C to +80 °C), the assembly handles hot dashboards, cold mornings, and extended sun exposure typical of mobile Remote ID monitoring.
Dronetag 2.4 GHz Omnidirectional Magnetic Antenna with 1 m Cable (SMA)
Purpose-built for Remote ID on 2.4 GHz, this omnidirectional magnetic antenna pairs a low-profile form factor with dependable vehicle-mount flexibility. The 1 m (≈3.28 ft) RG-174/U coax and SMA male connector make it a clean, plug-and-play match for Dronetag RIDER, improving reception consistency while keeping installs simple.
Magnetic Mount, Road-Ready Hold
Drop it on a steel roof, rack, or panel and go—no tools required. When properly attached to a clean, flat ferromagnetic surface, the base resists wind loads up to ≈87 mph (140 km/h), ideal for mobile operations and quick deployments.
Important: Real-world performance depends on surface type/flatness, antenna orientation, and wind conditions. Use extra caution on moving vehicles and verify adhesion before each run.
Ground-Plane Independent Design
The radiator is engineered to maintain a stable radiation pattern without relying on the vehicle’s metal surface as a ground plane. That means more predictable coverage when mounting on roofs with varying geometries or where nearby structures could detune typical whip antennas.
Optimized for Remote ID on 2.4 GHz
Tuned for 2400–2500 MHz, the antenna supports Bluetooth® 4.0 Legacy & Bluetooth 5.0 Long Range plus Wi-Fi beaconing—exactly the signals used by Remote ID broadcasts. A VSWR ≤ 1.8 helps protect link budget and reduce mismatch loss, while the specified 0.7 dBi gain keeps the pattern broad for uniform, all-around pickup.
Connector & Cable—Built for Clean Installs
The factory-terminated SMA male connector mates directly with compatible ports, and the 1 m (≈3.28 ft) RG-174/U lead—just 2.8 mm (≈0.11 in) in diameter—routes easily through door seals or hatch gaps without pinching. This model is compatible only with Dronetag RIDER; verify device connector type before ordering.
Low-Profile, Lightweight Hardware
At just ≈3.26 in × Ø1.18 in (82.8 mm × Ø30.0 mm) and ≈1.02 oz (28.8 g), the antenna stays unobtrusive on vehicles and cabinets, minimizing snag points and wind loading during highway or on-site use.
All-Weather Operating Range
Rated for −4 °F to 176 °F (−20 °C to +80 °C), the assembly handles hot dashboards, cold mornings, and extended sun exposure typical of mobile Remote ID monitoring.
Dronetag 2.4 GHz Omnidirectional Magnetic Antenna with 1 m Cable (SMA)
Dronetag 2.4 GHz Omnidirectional Magnetic Antenna — Specifications
| Frequency Band | 2.4 GHz ISM: 2400–2500 MHz |
| Remote ID Technologies | Bluetooth 4.0 Legacy & Bluetooth 5.0 Long Range; Wi-Fi |
| Radiation Pattern | Omnidirectional |
| Gain | 0.7 dBi |
| VSWR | ≤ 1.8 |
| Connector | SMA male |
| Cable Length / Type | ≈3.28 ft (1 m) RG-174/U |
| Cable Diameter | ≈0.11 in (2.8 mm) |
| Mount Type | Magnetic base |
| Ground Plane | Independent design (does not require vehicle body as ground plane) |
| Wind Hold Rating* | Up to ≈87 mph (140 km/h) when properly attached |
| Operating Temperature | −4 °F to 176 °F (−20 °C to +80 °C) |
| Dimensions | ≈3.26 in × Ø1.18 in (82.8 mm × Ø30.0 mm) |
| Weight | ≈1.02 oz (28.8 g) |
| Compatibility | Dronetag RIDER only |
*Actual performance depends on surface type/flatness, orientation, and wind conditions. Verify attachment before mobile use.
