ACSL TAITEN is an NDAA-compliant smart controller for SOTEN with a 7-inch, 1500-nit display, IP54 ruggedness, dual-band 2.4/5.8 GHz links with AES-256, HDMI out, customizable controls, and up to 8-hour runtime.

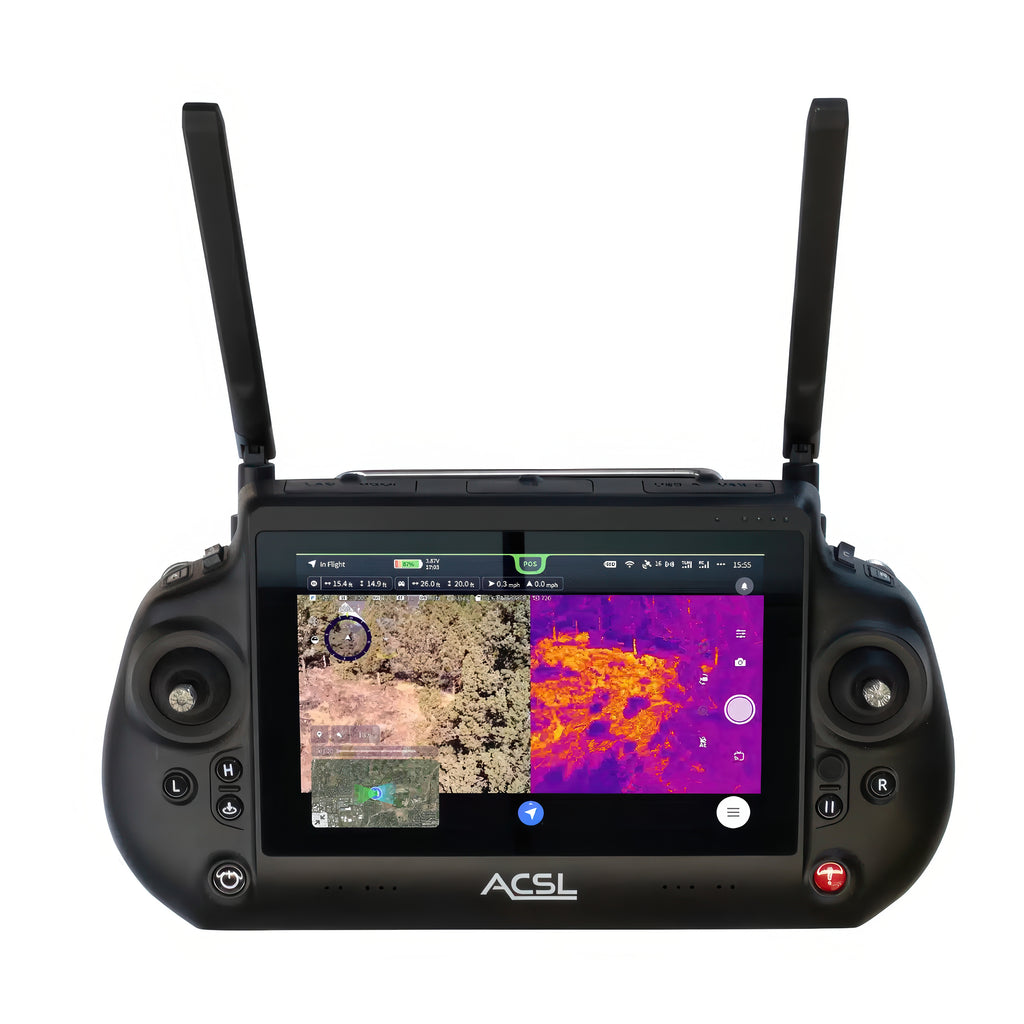

The ACSL TAITEN Smart Controller is a next-generation, NDAA-compliant command center for SOTEN operations, pairing a brighter 7-inch integrated display with a faster processor and the ACSL TAKEOFF ground-control app for precise, low-latency control. A rugged IP54 build, extended runtime, and dual-band comms deliver reliable performance in demanding environments.
Visual Clarity & Responsive Control
TAITEN’s integrated panel pushes 1500 nits of brightness at 1200 × 1920 resolution, preserving detail in full sun while keeping telemetry readable at a glance. The upgraded compute platform and refined UX shorten feedback loops for gimbal, camera, and flight inputs—ideal for time-critical inspection and public-safety workflows.
Built for the Field
The controller’s IP54 rating resists dust and splashes, and its thermal envelope supports extended missions in challenging climates. A high-capacity power system provides up to 8 hours of operation (extendable over USB-C), while a balanced chassis improves handheld ergonomics over long shifts.
Links, Security & Teaming
Dual-band 2.4 GHz + 5.8 GHz links with ACSL Fides-Link radio and AES-256 encryption maintain resilient connectivity, with an unobstructed operating range of 6+ miles where permitted. Pair up to three controllers to a single aircraft for instructor-pilot, payload-operator, or handoff workflows. Integrated Wi-Fi supports networking and updates.
I/O & Ecosystem
TAITEN expands on-site interoperability with HDMI for external monitors and a full I/O suite—USB-C, USB-A 2.0, microSD, Ethernet, 3.5 mm audio, and a tripod mount—plus built-in GNSS, auto-brightness light sensor, microphone, and tactile indicators (connection/battery LEDs and vibration motor). Runs Android 13 for smooth TAKEOFF integration and accessory support.
Key Features
- NDAA-compliant, IP54 smart controller purpose-built for SOTEN
- 7″ integrated display, 1500 nits, 1200×1920 resolution
- Dual-band 2.4 GHz + 5.8 GHz with AES-256 encryption; 6+ mi unobstructed range
- Up to 8 hours runtime; extend via USB-C power
- Customizable controls: 3-state switch, 8 buttons, 2 wheels, 5-way hat
- I/O: HDMI, USB-C, USB-A 2.0, microSD, Ethernet, 3.5 mm, tripod mount
- Sensors/indicators: GNSS, light sensor, mic, vibration motor, link/battery LEDs
- Pairing: up to 3 controllers per aircraft; Remote ID compliant
The ACSL TAITEN Smart Controller is a next-generation, NDAA-compliant command center for SOTEN operations, pairing a brighter 7-inch integrated display with a faster processor and the ACSL TAKEOFF ground-control app for precise, low-latency control. A rugged IP54 build, extended runtime, and dual-band comms deliver reliable performance in demanding environments.
Visual Clarity & Responsive Control
TAITEN’s integrated panel pushes 1500 nits of brightness at 1200 × 1920 resolution, preserving detail in full sun while keeping telemetry readable at a glance. The upgraded compute platform and refined UX shorten feedback loops for gimbal, camera, and flight inputs—ideal for time-critical inspection and public-safety workflows.
Built for the Field
The controller’s IP54 rating resists dust and splashes, and its thermal envelope supports extended missions in challenging climates. A high-capacity power system provides up to 8 hours of operation (extendable over USB-C), while a balanced chassis improves handheld ergonomics over long shifts.
Links, Security & Teaming
Dual-band 2.4 GHz + 5.8 GHz links with ACSL Fides-Link radio and AES-256 encryption maintain resilient connectivity, with an unobstructed operating range of 6+ miles where permitted. Pair up to three controllers to a single aircraft for instructor-pilot, payload-operator, or handoff workflows. Integrated Wi-Fi supports networking and updates.
I/O & Ecosystem
TAITEN expands on-site interoperability with HDMI for external monitors and a full I/O suite—USB-C, USB-A 2.0, microSD, Ethernet, 3.5 mm audio, and a tripod mount—plus built-in GNSS, auto-brightness light sensor, microphone, and tactile indicators (connection/battery LEDs and vibration motor). Runs Android 13 for smooth TAKEOFF integration and accessory support.
Key Features
- NDAA-compliant, IP54 smart controller purpose-built for SOTEN
- 7″ integrated display, 1500 nits, 1200×1920 resolution
- Dual-band 2.4 GHz + 5.8 GHz with AES-256 encryption; 6+ mi unobstructed range
- Up to 8 hours runtime; extend via USB-C power
- Customizable controls: 3-state switch, 8 buttons, 2 wheels, 5-way hat
- I/O: HDMI, USB-C, USB-A 2.0, microSD, Ethernet, 3.5 mm, tripod mount
- Sensors/indicators: GNSS, light sensor, mic, vibration motor, link/battery LEDs
- Pairing: up to 3 controllers per aircraft; Remote ID compliant
ACSL TAITEN Specifications
Display
| Size | 7 in |
|---|---|
| Resolution | 1200 × 1920 |
| Brightness | 1500 nits |
Radio & Links
| Operating Bands | 2.4 GHz + 5.8 GHz |
|---|---|
| Range* | 6+ miles (unobstructed, low-interference) |
| Wireless | Wi-Fi |
| Encryption | AES-256 |
| Radio | ACSL Fides-Link |
| Pairing | Up to 3 controllers to 1 aircraft |
Power & Runtime
| Operating Time | Up to 8 hours (extendable via USB-C power) |
|---|---|
| Charging/Power | USB-C |
Environmental
| IP Rating | IP54 |
|---|---|
| Operating Temp | 68–140 °F (20–60 °C) |
| Storage Temp | 68–122 °F (20–50 °C) |
| Charging Temp | 32–113 °F (0–45 °C) |
Controls & UX
| Primary Controls | 2-axis sticks; 2× camera gimbal wheels; 3-state mode switch (AUT/POS/MAN); Go-Home; Land; Emergency; Power |
|---|---|
| Customizable Inputs | 3-state switch; 8 buttons; 2 wheels; 5-way hat |
| Indicators | Connection LED; Battery LED; Vibration motor |
| Sensors | GNSS module; Light sensor (auto-brightness); Microphone |
Interfaces
| Ports | USB-C; USB-A 2.0; HDMI; microSD; Ethernet; 3.5 mm audio; Tripod mount |
|---|---|
| Video Out | HDMI |
System
| OS | Android 13 |
|---|---|
| App | ACSL TAKEOFF (integrated) |
| Remote ID | Compliant |
| NDAA | Yes |
Physical
| Dimensions | 10.6 × 6.5 × 2.7 in |
|---|---|
| Weight | ≈3.2 lb |
*Range varies with regulations, environment, interference, and antenna orientation.
- NDAA: Yes
- Remote ID: Not applicable to controller (aircraft-level requirement)
- DIU Blue UAS: Not applicable (controller accessory)
- Link Security: AES-256 encryption (operational security; not a certification)
