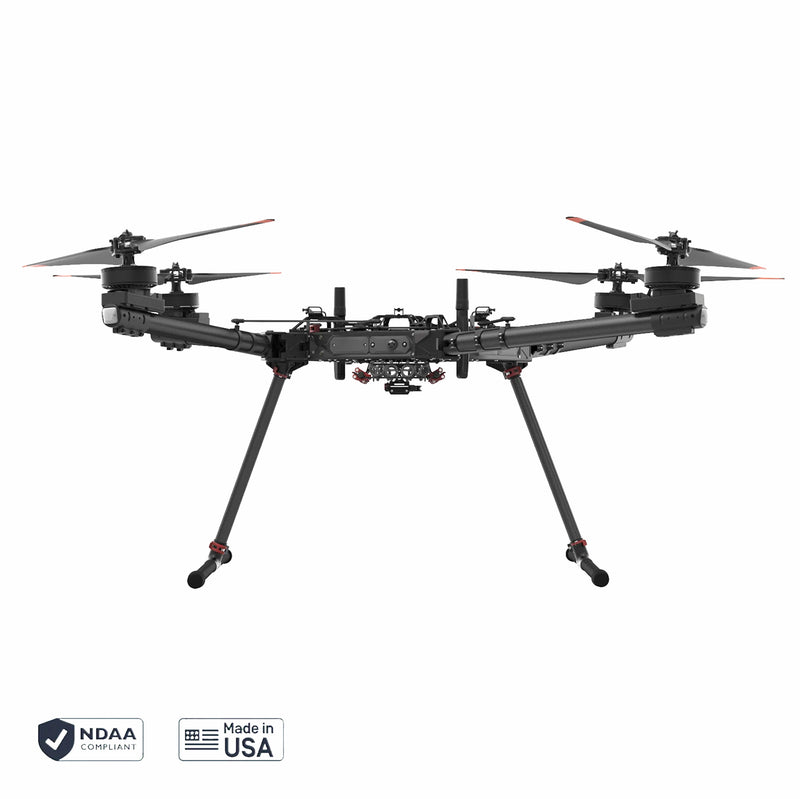

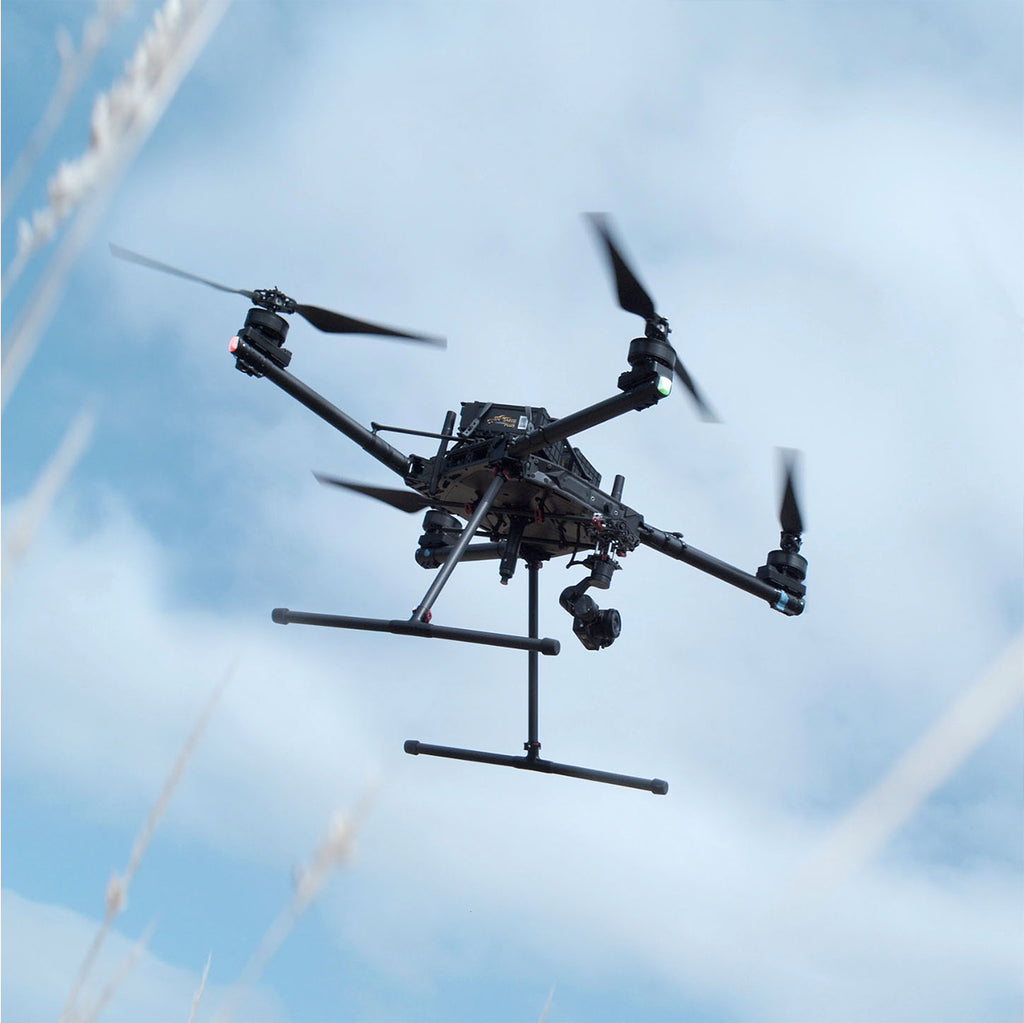

Freefly Alta X Gen2 (NDAA)

Freefly Alta X Gen2 (NDAA) is a heavy-lift multirotor for teams that need maximum payload capacity, dependable endurance, and clean integration with modern sensors and data workflows. It pairs the proven Alta X airframe with the same custom Skynode mission computer used on Astro Max, then adds an NDAA-compliant Doodle Labs control link for secure operations.

From large cinema builds to multi-sensor industrial payloads, Alta X Gen2 (NDAA) delivers precise control authority, rapid field setup, and a flexible payload architecture. The internal payload bay, Smart Dovetail interface, onboard power regulation, and Pilot Pro ground control streamline missions from planning to handoff.

Heavy-Lift, High-Stability Platform

• 35 lb payload class: carry large cinema rigs, advanced sensors, or dual/multi-payload stacks with confident handling.
• Alta X chassis: carbon-fiber structure, weather-tolerant design, and a fast, repeatable field-deploy workflow.
• ActiveBlade prop compatibility: smooth response and stability under heavy loads.

NDAA-Ready Autonomy & Control

• Custom Skynode flight controller: precise navigation, enhanced GNSS resilience, and intelligent failsafes tuned for big-lift missions.
• Doodle Labs RF link (NDAA): resilient, compliant command and video link integrated with Pilot Pro.
• Mission planning & logging: integrated telemetry and flight logs suitable for enterprise and inspection workflows.

Smart Dovetail & Internal Payload Bay

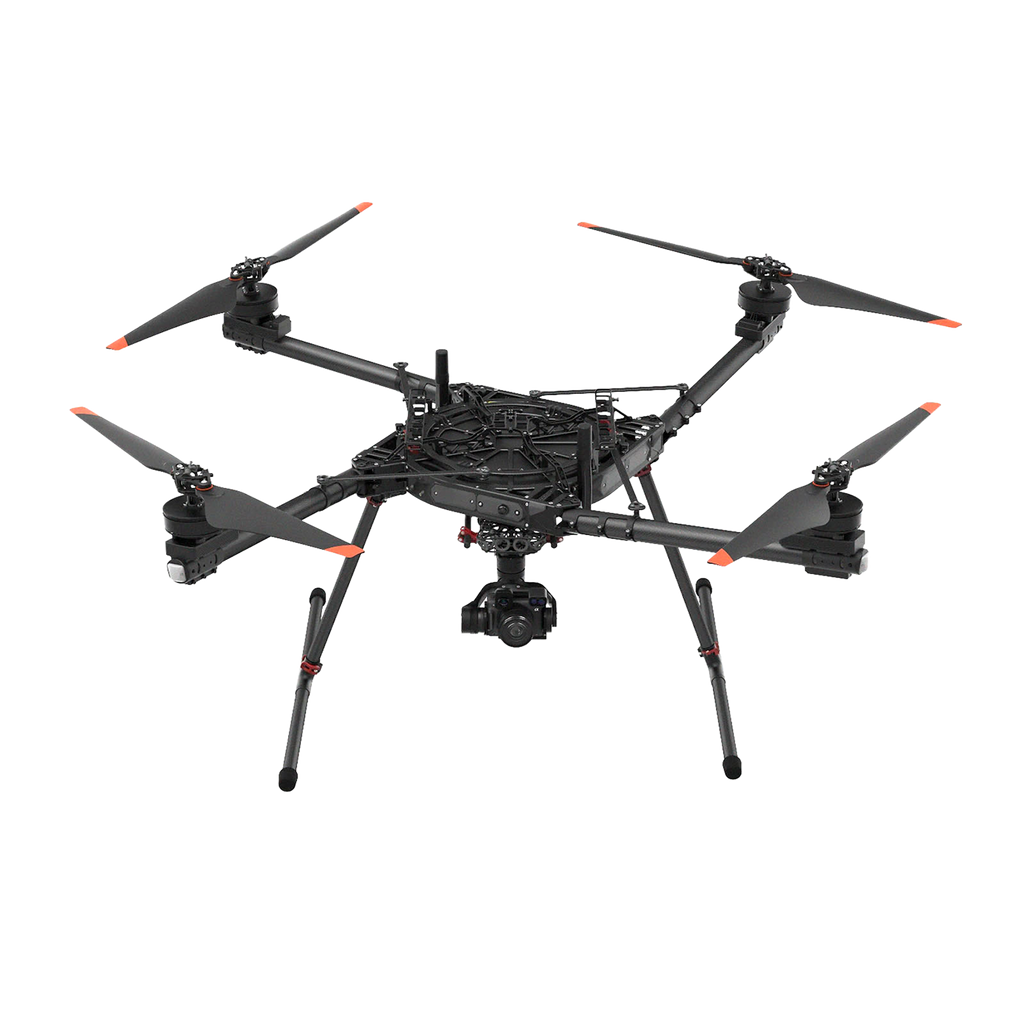

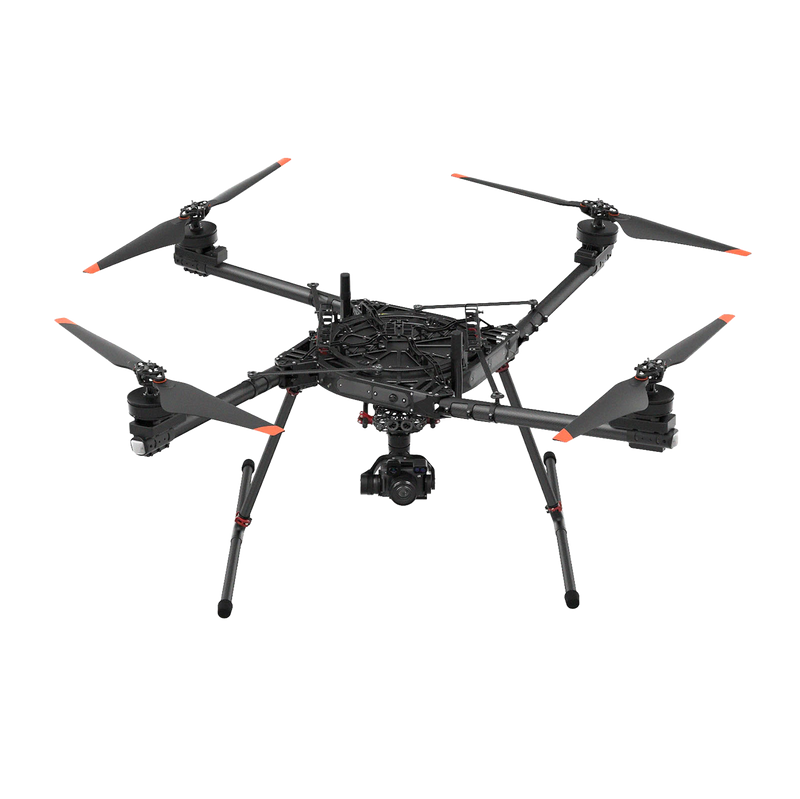

• Quick-connect payloads: Smart Dovetail exposes power and data for Freefly and third-party integrations (LR1 at launch, with additional options on the roadmap).

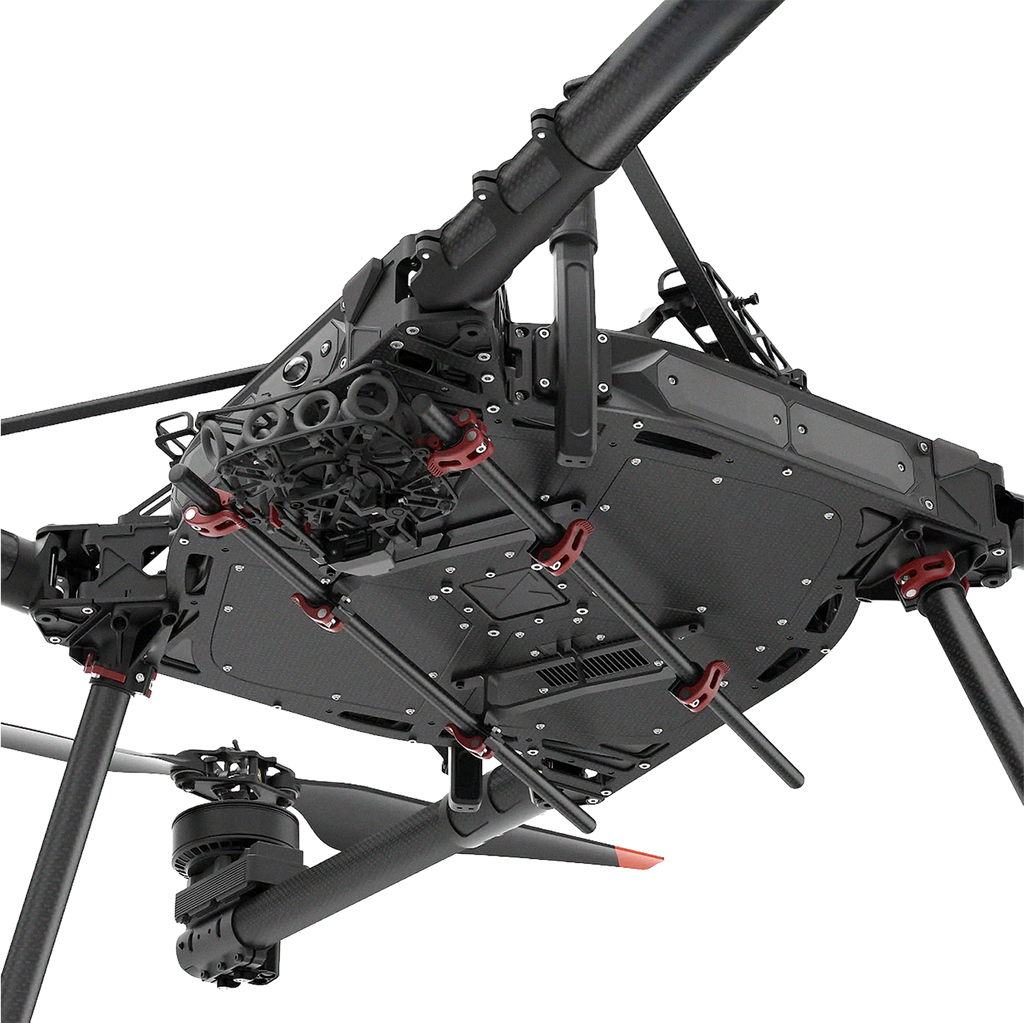

• Internal bay access: removable chassis panels open a protected integration space for compute, radios, and custom hardware.
• Expanded I/O: onboard Ethernet and regulated payload power simplify custom sensing or control stacks.

Operator-Focused Power Architecture

• Upgraded smart batteries (AS150): improved flight-time estimation and streamlined ground handling.
• Onboard regulation: native 12 V and 24 V rails to power payloads without external converters.

Field Gear That Speeds Setup

• 12 mm (~0.47 in) rail mount: standard rails for rapid payload mounting and balance.
• Smart Dovetail with isolated mount: vibration isolation suited for LR1 and similar payloads.
• Skid landing gear: quick-release legs ~15 in long for stable ground ops and easy transport.
• Pilot Pro controller (Doodle Labs RF): precise, robust control with a live FPV feed.
• Transport case: fits Alta X Gen2 with rails and Smart Dovetail installed, Pilot Pro, spare ActiveBlade props, and skid gear.

Connectivity & Compliance-Ready Setup

• Remote connectivity options: onboard LTE support for remote operations and data sync where available.
• Standard Remote ID: ships preconfigured for FAA Standard Remote ID to align with U.S. airspace requirements.
• NDAA alignment: airframe and ground hardware configured with compliant components, including the Doodle Labs link.

Built for Demanding Missions

• Cinema: stabilized heavy camera packages with clean cable runs and regulated power.
• Inspection & mapping: large-format RGB, thermal, ranging, or multi-sensor payloads on a single aircraft.
• Cargo & specialty: internal-bay integrations and gear options for delivery or custom robotics tasks.

Alta X Gen2 (NDAA) Airframe

Power System

Included Pre-Installs

Pilot Pro Controller (NDAA)

Alta X Gen2 Transport Case

(1) Alta X Gen2 (NDAA) Travel Case
(1) Alta X Gen2 (NDAA) Airframe (Standard Remote ID; props installed)
(1) Extra Bits Kit
(1) AS150U fused adapter for safe bench configuration
(1) Skid Landing Gear (380 mm / 14.97" legs only)
(1) 12 mm Rail Kit
(1) Smart Dovetail with isolated mount (LR1-ready)
(1) Pilot Pro Controller (preconfigured for Alta X Gen2; Doodle Labs RF)

*Batteries and chargers required for flight are not included; sold separately.

Recommended (not included): at least one dual-channel charger and six Alta X Gen2 12S batteries per aircraft. If you cannot charge in the field and need more than three flights, add one extra battery pair per additional flight. Each charger charges two batteries at a time; additional chargers increase throughput.

Mission-specific hardware (not included): for cinema or vibration-damped payloads, use Payload Vibration Damper + Skyview Landing Gear + Mōvi Pro Landing Gear. For cargo operations, use Cargo Landing Gear, application-specific accessories, and the Short Quick Release Mount.

*Select accessories are slated for availability soon and will be priced similarly to existing Alta X batteries (~$1,400 per pair) and chargers (~$750).

Mounting & Isolation

Payload Vibration Damper
Alta X Short Quick Release Mount

Landing Gear

Cargo Landing Gear
Skyview Landing Gear for Alta X

Power & Charging

Alta X Gen2 12S Batteries with AS150 connectors*
Dual-channel 12S Charger with AS150 connectors*

Navigation

RTK GPS Ground Station

Propellers

CW Single Motor Propeller Set for Alta X
CCW Single Motor Propeller Set for Alta X
CW Single Motor Propeller Set with ActiveBlade (M4 fasteners)
CCW Single Motor Propeller Set with ActiveBlade (M4 fasteners)

*Accessories marked with an asterisk are planned for availability soon and are expected to be priced similarly to current Alta X batteries (~$1,400 per pair) and chargers (~$750).

Standard Remote ID

• Compliant: YES
• Ships with Remote ID hardware preinstalled and configured for FAA Standard Remote ID.
• BVLOS: Requires an FAA waiver or approved CONOPS; the aircraft can support BVLOS programs when operated under the appropriate approvals.

NDAA §848

• System compliance: YES (NDAA-configured variant).
• Airframe (Alta X Gen2): Compliant.
• Pilot Pro controller: Compliant.
• Doodle Labs radio link: Compliant.

DIU Blue UAS

• Compliant: NO (not currently listed on the DoD DIU Blue UAS list).
• Airframe (Alta X Gen2): Approval in process; not currently Blue listed.
• Pilot Pro controller: Compliant component.
• Doodle Labs radio link: Compliant component.
