Discover industrial precision with the Hylio AG-230 AgriDrone. Dual 4-gallon tanks deliver a 35-ft swath and 50 acres/hr coverage. With obstacle avoidance, HD FPV streaming, and RTK GPS, it’s engineered for efficient, reliable large-scale farming.

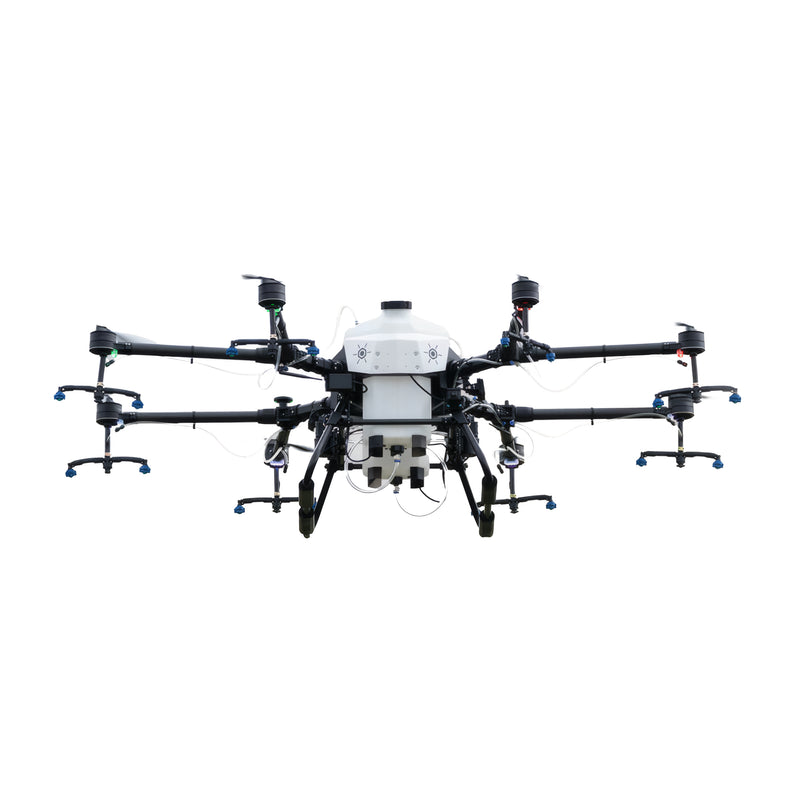

Introducing the Hylio AG-230—a UAS engineered for industrial-scale applications. With a generously sized tank, this drone is built to handle extensive tasks, delivering efficiency and reliability on every mission. Whether operating individually or as part of a coordinated swarm, the AG-230 is ideally suited for managing large acreage with precision.
Key Specifications
|
8.0 Gallons total (2 x 4.0 Gallons) |
Up to 35 foot swath width |
Up to 50 acres/hr @ 1 GPA Rate |
Features & Accessories
AG-216 AgriDrone
The AG-216 AgriDrone is a fully autonomous, six-rotor UAS platform, designed and manufactured by Hylio, Inc. It comes equipped with a high-precision spraying system that includes a 4.5-gallon tank, TeeJet nozzles, and electronic flowmeters for accurate application.
Obstacle Avoidance Radar
The AG-216 is outfitted with multiple radar sensors that enable real-time obstacle detection and avoidance. This advanced system enhances flight safety, ensuring reliable navigation through challenging environments.
HD FPV Video Streaming
AG-216 is equipped with a high-definition camera that streams live video directly to the Hylio GroundLink Controller, providing the operator with clear, real-time situational awareness.
Long Range Radio
Utilizing a built-in 2.4 GHz radio telemetry modem integrated within the Hylio GroundLink Controller, this system enables direct communication with one or multiple Hylio UAS. It allows operators to maintain control without relying on an internet connection.
RTK Compatible GPS
Equipped with two high-precision GPS units, the AG-216 supports RTK correction data for improved accuracy. The RTK ground station, however, is available separately.
Drone Toolkit
The Drone Toolkit is a handy, all-in-one tool bag stocked with essential instruments for operating and maintaining your UAS. It includes a torque wrench, pliers, a variety of screwdrivers, a digital level, and other indispensable tools to ensure your drone stays in top condition.
Handheld GPS Marker
This proprietary handheld GPS device seamlessly integrates with AgroSol, enabling operators to efficiently mark field boundaries, obstacles, and other key landmarks for accurate field mapping.
Hylio GroundLink Controller
The AG-216 comes standard with Hylio’s proprietary GroundLink Controller—a fully integrated, NDAA-compliant ground station solution designed and built in-house. It features a rugged, ergonomic controller that combines a 13.3-inch Windows-based tablet with a 2.4 GHz radio, allowing you seamless access to both autonomous and manual controls from a single platform.
Smart LiPo Batteries
Powering the UAS, these high-performance 22 Amp, 44.4V (977 Watt) lithium-polymer batteries feature integrated LED indicators that display current capacity and estimated lifespan, ensuring you stay informed about battery performance.
Automatic LiPo Chargers
These two-channel lithium-polymer battery chargers are designed to simultaneously charge a pair of batteries, typically completing the process in 25–30 minutes. Please note that charging times may vary depending on factors such as power source voltage and capacity, ambient temperature, and battery discharge levels. Ergonomically designed and ruggedly built, these chargers are ideal for industrial applications.
Access to AgroSol Software
Your purchase includes lifetime access to Hylio’s proprietary agricultural UAS ground control software, AgroSol. Operators benefit from full access to the basic AgroSol GCS features without any recurring fees.
Comprehensive Training
Your purchase includes full access to an extensive suite of training materials, featuring video tutorials and written guides. These resources cover UAS maintenance and handling, precision agricultural techniques, regulatory compliance, and safety protocols.
Domestic Delivery
Your purchase includes freight delivery to any destination within the continental U.S. For international shipments, additional charges will apply.
Unlimited Remote Support
Hylio values their customers by offering unlimited remote technical support from a diverse team of agricultural, engineering, and computer science experts. Available via phone, email, and video chat, our team is ready to assist you during normal business hours: Monday through Saturday from 9:00 AM to 6:00 PM Central Time.
One Year Warranty
Your purchase includes a one-year warranty covering component defects that are the manufacturer’s responsibility. Please inquire for further details regarding the specific warranty terms and conditions.
FAA Regulatory Onboarding
Hylio assists with Part 137 onboarding as a complimentary service along with your purchase of any of their UAS. They provide comprehensive guides and sample documents for every step of the process. Essentially, you need to complete and submit the required application documents to your local Flight Standards District Office (FSDO), and eventually, FAA officials will conduct an interview/test to finalize your application. Thanks to FAA updates in 2023, the process is now faster, though it may still take several months—so the sooner you begin, the better. You can learn more about drone spraying regulations on their regulations page here. For any questions regarding the
Next Level Features Built for Work
Control
Hylio’s AgriDrones offer the flexibility of both autonomous and manual flight control. Command up to three unmanned aerial systems simultaneously from a single ground station for fully automated operations, while each AgriDrone also comes equipped with an RC controller for seamless manual control when needed.
Reliability
Hylio designs and builds its systems to endure the real-world challenges of field work. Constructed with aerospace-grade materials, equipped with redundant subsystems, and featuring easily serviceable components, our AgriDrones are engineered to reliably perform heavy-duty tasks day in and day out.
Monitor
Benefit from an extensive array of sensors that provide real-time access to critical metrics—GPS position, flow rate, altitude, and more. All flight and treatment data is seamlessly stored in your account, giving you instant access to as-applied maps, maintenance records, and additional insights through our user-friendly interface.
Introducing the Hylio AG-230—a UAS engineered for industrial-scale applications. With a generously sized tank, this drone is built to handle extensive tasks, delivering efficiency and reliability on every mission. Whether operating individually or as part of a coordinated swarm, the AG-230 is ideally suited for managing large acreage with precision.
Key Specifications
|
8.0 Gallons total (2 x 4.0 Gallons) |
Up to 35 foot swath width |
Up to 50 acres/hr @ 1 GPA Rate |
Features & Accessories
AG-216 AgriDrone
The AG-216 AgriDrone is a fully autonomous, six-rotor UAS platform, designed and manufactured by Hylio, Inc. It comes equipped with a high-precision spraying system that includes a 4.5-gallon tank, TeeJet nozzles, and electronic flowmeters for accurate application.
Obstacle Avoidance Radar
The AG-216 is outfitted with multiple radar sensors that enable real-time obstacle detection and avoidance. This advanced system enhances flight safety, ensuring reliable navigation through challenging environments.
HD FPV Video Streaming
AG-216 is equipped with a high-definition camera that streams live video directly to the Hylio GroundLink Controller, providing the operator with clear, real-time situational awareness.
Long Range Radio
Utilizing a built-in 2.4 GHz radio telemetry modem integrated within the Hylio GroundLink Controller, this system enables direct communication with one or multiple Hylio UAS. It allows operators to maintain control without relying on an internet connection.
RTK Compatible GPS
Equipped with two high-precision GPS units, the AG-216 supports RTK correction data for improved accuracy. The RTK ground station, however, is available separately.
Drone Toolkit
The Drone Toolkit is a handy, all-in-one tool bag stocked with essential instruments for operating and maintaining your UAS. It includes a torque wrench, pliers, a variety of screwdrivers, a digital level, and other indispensable tools to ensure your drone stays in top condition.
Handheld GPS Marker
This proprietary handheld GPS device seamlessly integrates with AgroSol, enabling operators to efficiently mark field boundaries, obstacles, and other key landmarks for accurate field mapping.
Hylio GroundLink Controller
The AG-216 comes standard with Hylio’s proprietary GroundLink Controller—a fully integrated, NDAA-compliant ground station solution designed and built in-house. It features a rugged, ergonomic controller that combines a 13.3-inch Windows-based tablet with a 2.4 GHz radio, allowing you seamless access to both autonomous and manual controls from a single platform.
Smart LiPo Batteries
Powering the UAS, these high-performance 22 Amp, 44.4V (977 Watt) lithium-polymer batteries feature integrated LED indicators that display current capacity and estimated lifespan, ensuring you stay informed about battery performance.
Automatic LiPo Chargers
These two-channel lithium-polymer battery chargers are designed to simultaneously charge a pair of batteries, typically completing the process in 25–30 minutes. Please note that charging times may vary depending on factors such as power source voltage and capacity, ambient temperature, and battery discharge levels. Ergonomically designed and ruggedly built, these chargers are ideal for industrial applications.
Access to AgroSol Software
Your purchase includes lifetime access to Hylio’s proprietary agricultural UAS ground control software, AgroSol. Operators benefit from full access to the basic AgroSol GCS features without any recurring fees.
Comprehensive Training
Your purchase includes full access to an extensive suite of training materials, featuring video tutorials and written guides. These resources cover UAS maintenance and handling, precision agricultural techniques, regulatory compliance, and safety protocols.
Domestic Delivery
Your purchase includes freight delivery to any destination within the continental U.S. For international shipments, additional charges will apply.
Unlimited Remote Support
Hylio values their customers by offering unlimited remote technical support from a diverse team of agricultural, engineering, and computer science experts. Available via phone, email, and video chat, our team is ready to assist you during normal business hours: Monday through Saturday from 9:00 AM to 6:00 PM Central Time.
One Year Warranty
Your purchase includes a one-year warranty covering component defects that are the manufacturer’s responsibility. Please inquire for further details regarding the specific warranty terms and conditions.
FAA Regulatory Onboarding
Hylio assists with Part 137 onboarding as a complimentary service along with your purchase of any of their UAS. They provide comprehensive guides and sample documents for every step of the process. Essentially, you need to complete and submit the required application documents to your local Flight Standards District Office (FSDO), and eventually, FAA officials will conduct an interview/test to finalize your application. Thanks to FAA updates in 2023, the process is now faster, though it may still take several months—so the sooner you begin, the better. You can learn more about drone spraying regulations on their regulations page here. For any questions regarding the
Next Level Features Built for Work
Control
Hylio’s AgriDrones offer the flexibility of both autonomous and manual flight control. Command up to three unmanned aerial systems simultaneously from a single ground station for fully automated operations, while each AgriDrone also comes equipped with an RC controller for seamless manual control when needed.
Reliability
Hylio designs and builds its systems to endure the real-world challenges of field work. Constructed with aerospace-grade materials, equipped with redundant subsystems, and featuring easily serviceable components, our AgriDrones are engineered to reliably perform heavy-duty tasks day in and day out.
Monitor
Benefit from an extensive array of sensors that provide real-time access to critical metrics—GPS position, flow rate, altitude, and more. All flight and treatment data is seamlessly stored in your account, giving you instant access to as-applied maps, maintenance records, and additional insights through our user-friendly interface.
Aircraft
| Total Weight (without batteries) | 61 lb. |
| Maximum Recommended Takeoff Weight | 165 lb. |
| Maximum Thrust | 270 lb. |
| Maximum Operating Speed | 30 mph |
| Maximum Flight Altitude | 15,000 ft. MSL Reduce payload by 12% for each 3,000 ft. increase in altitude. |
| Wheelbase | 83.5 in. |
| Material | Carbon Fiber, Aluminum, Plastic |
| Dimensions | Folded: 44 x 44 x 25 in. Unfolded: 81 x 81 x 25 in. |
| Flight Time | Full Payload: approx. 8 min. Mixed: approx. 12-15 min. @ 25 lb./min. payload application rate No Payload: approx. 20 min. |
Spray System
| Maximum Payload (Weight) | 85 lb. (near sea level) |
| Maximum Payload (Volume) | 8 gal. |
| Nozzle Compatibility | Compatible with any TeeJet or similar style nozzle tips. Optional rotary atomizer nozzles available. |
| Pump System | 2 x Diaphragm Pumps, 65 PSI |
| Flow Rate (no nozzle) | 3.0 gal./min. |
| Flow Rate (with TT 11003 nozzle tip) | 0.4 – 4.0 gal./min. |
| Effective Swath Width | 20 – 30 ft. |
| Productivity Rate | Up to 50 ac./hr. at 1 gal./ac. |
Spreader System
| Maximum Payload (Weight) | 110 lb. (near sea level) |
| Maximum Payload (Volume) | 21 gal. |
| Weight of Device | 3.5 lb. |
| Optimal Particle Size | 0.02 – 0.4 in. |
| Effective Swath | Up to 40 ft. |
| Maximum Flow Rate | Up to 25 lb./min. |
| Productivity Rate | Up to 60 ac./hr. at 20 lb./ac. |
Propulsion
| Motor KV | 100 rpm/V |
| Foldable Propeller | 30 x 9 in. |
| Configuration | Octocopter |
Battery
| Battery System | 2 x 12S 16 Ah (44.4 V) Intelligent LiPo Batteries |
| Battery Weight | 9 lb. each; total = 18 lb. |
Weather
| Ingress Protection Rating | IP55 |
| Maximum Sustained Wind | 25 mph |
| Maximum Wind Gust | 40 mph |
Communication & Control (Hylio GroundLink)
| Standard Control Device | Hylio GroundLink Controller |
| Ground Station Control Software | Hylio AgroSol GCS; GroundLink Operating System: Windows 11 |
| Available Flight Modes | Swarm up to 3 units, fully autonomous, position hold manual, fully manual |
| Operating Frequencies | 2470 to 2477 MHz |
| Wireless Transmission Range | Max Unobstructed: 18.5 mi. Typical Rural Operation Setting: 3 mi. With 4G SIM: Unlimited (wherever cellular coverage is available) |
| Regulatory Compliance | FY2019 NDAA Sec. 889 Compliant; FY2020 NDAA Section 848 Compliant; FCC Part 15 Compliant |
