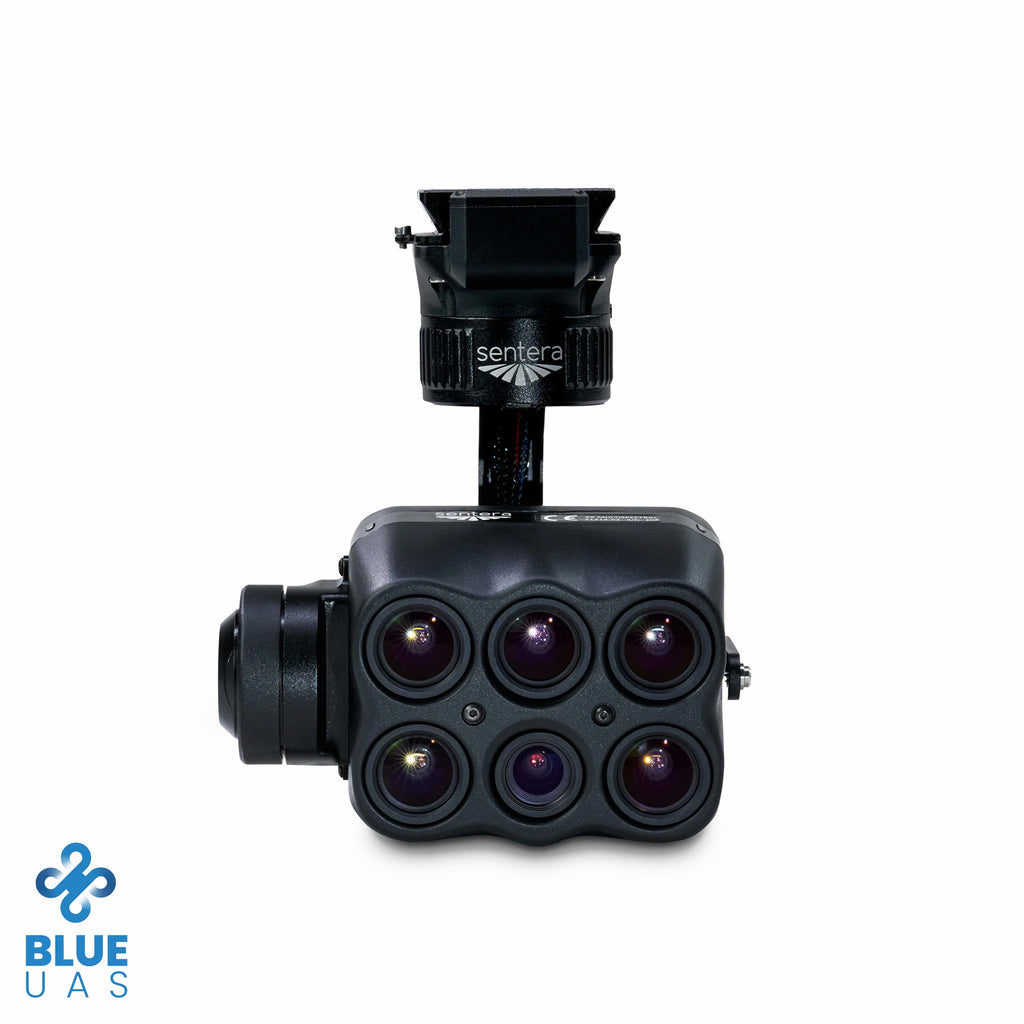

Sentera 6X Multispectral Sensor with Gimbal (Smart Dovetail) combines five 3.2 MP multispectral bands and a 20 MP RGB imager in a quick-release, stabilized package. Capture synchronized 5 fps imagery, store it on a 512 GB SSD, and swap onto any Astro with Smart Dovetail for fast, high-accuracy field mapping.
Sentera 6X Multispectral Sensor + Gimbal (Smart Dovetail) captures perfectly aligned 5-band multispectral and 20 MP RGB imagery in a single pass. Paired with Freefly’s quick-release Smart Dovetail gimbal, the NDAA-compliant 6X delivers 5 fps sustained capture, 512 GB internal SSD, and rock-steady stabilization—ideal for large-acreage mapping on long Astro flights.
Key Features
- Five × 3.2 MP global-shutter multispectral sensors + one × 20 MP RGB (Sony IMX147).
- Synchronized capture at 5 fps; 5.2 cm GSD from 120 m (400 ft) AGL.
- Stable, lightweight gimbal with Freefly Smart Dovetail quick-release.
- 512 GB internal SSD plus microSD logging; USB-C & GigE data offload.
- NDAA compliant, DIU approved; Sentera PN 21930-02.
Sentera 6X Multispectral Sensor + Gimbal (Smart Dovetail) captures perfectly aligned 5-band multispectral and 20 MP RGB imagery in a single pass. Paired with Freefly’s quick-release Smart Dovetail gimbal, the NDAA-compliant 6X delivers 5 fps sustained capture, 512 GB internal SSD, and rock-steady stabilization—ideal for large-acreage mapping on long Astro flights.
Key Features
- Five × 3.2 MP global-shutter multispectral sensors + one × 20 MP RGB (Sony IMX147).
- Synchronized capture at 5 fps; 5.2 cm GSD from 120 m (400 ft) AGL.
- Stable, lightweight gimbal with Freefly Smart Dovetail quick-release.
- 512 GB internal SSD plus microSD logging; USB-C & GigE data offload.
- NDAA compliant, DIU approved; Sentera PN 21930-02.
Image Sensors
| Multispectral array | 5 × 3.2 MP global-shutter |
| Spectral bands* | Blue 475 ± 15 nm • Green 550 ± 10 nm • Red 670 ± 15 nm • Red-Edge 715 ± 5 nm • NIR 840 ± 10 nm |
| RGB sensor | 20 MP Sony IMX147, rolling-shutter |
| Ground sample distance | 5.2 cm / 13.9″ at 120 m / 400 ft AGL |
| Field of view | 104 m × 76 m at 120 m AGL |
| Capture rate | 5 fps sustained (all channels synchronized & aligned) |
Storage & Data
| Internal storage | 512 GB SSD |
| Aux logging | microSD slot |
| Interfaces | Smart Dovetail • USB-C • Gigabit Ethernet |
Physical
| Weight (sensor + gimbal) | 511 g |
| Mount | Quick-release Freefly Smart Dovetail (included) |
*Custom band configurations available—see Sentera support for details.

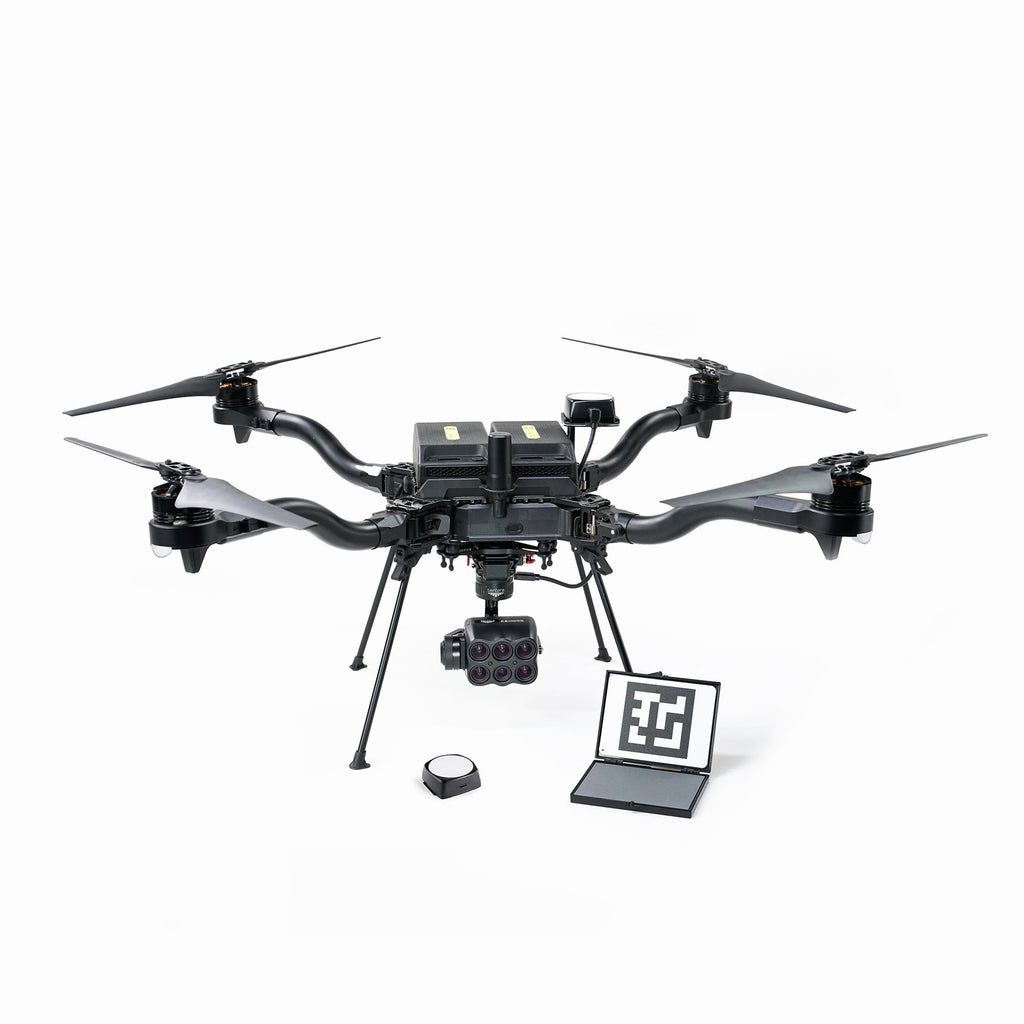

(1) Travel Case with Custom Foam
(1) Sentera 6X Multispectral Sensor
(1) Lightweight Gimbal with Smart Dovetail
(1) Incident Light Sensor & GPS
(1) Calibrated Reflectance Panel
(1) Light Sensor Mounting Kit
(1) 10 ft USB-C Cable
(1) AC Wall Power Adapter
(1) Right-Angle USB-C Adapter

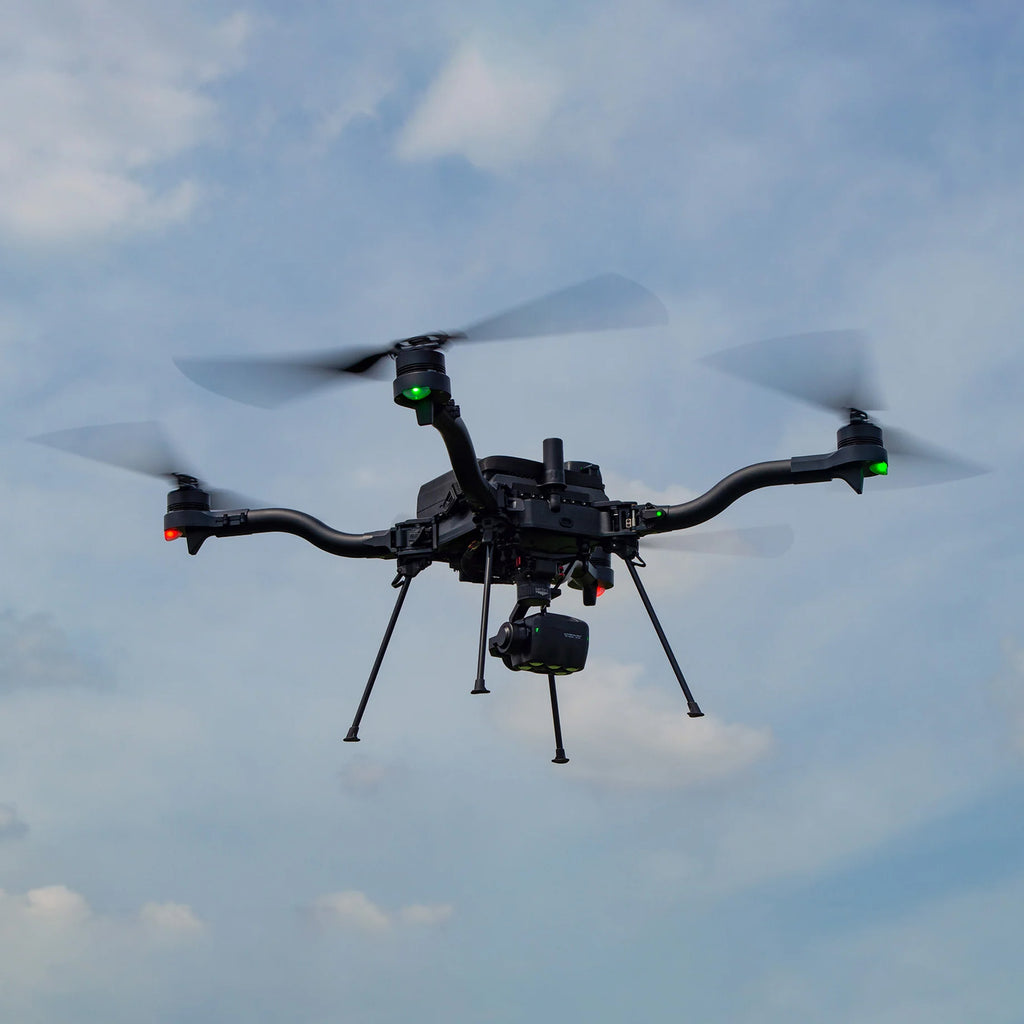

Astro platforms equipped with the Astro Isolator (integrated Smart Dovetail receiver) or Smart Dovetail Kit.
