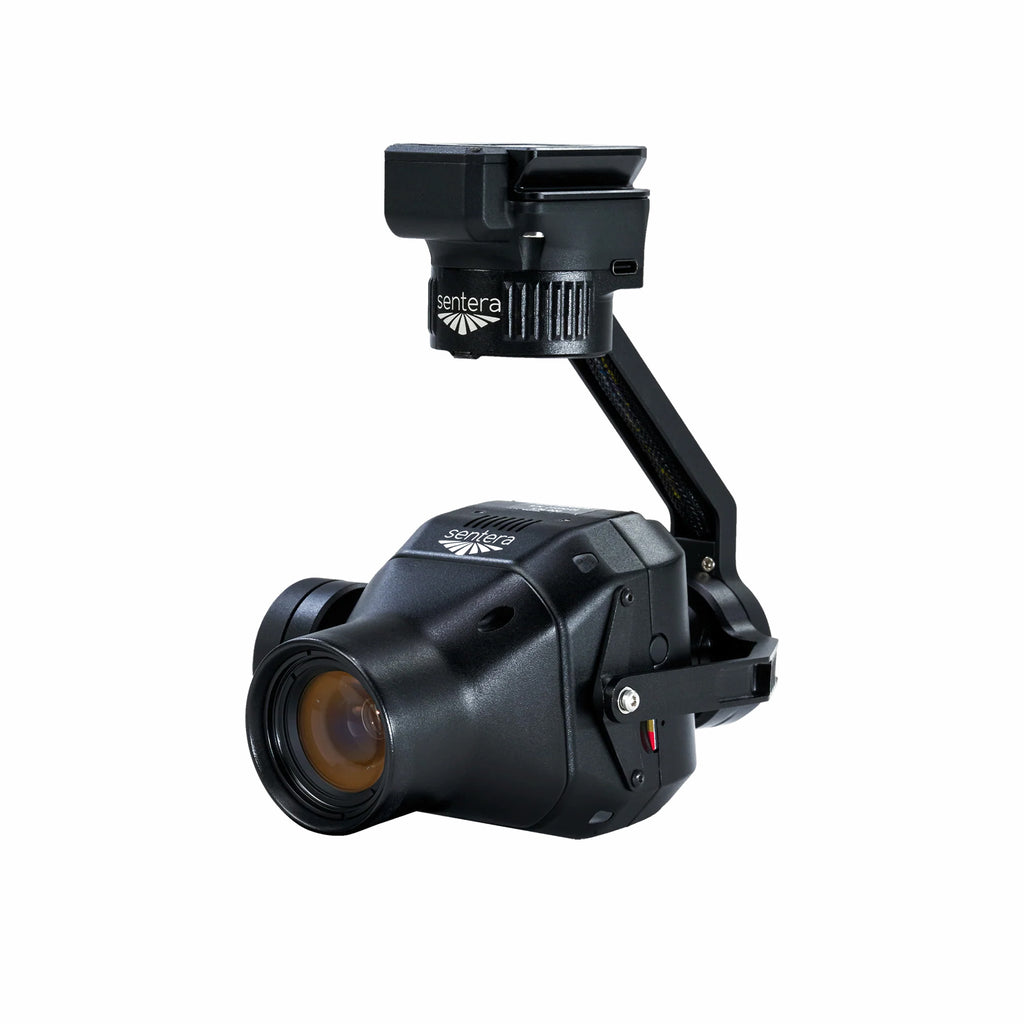

Sentera 65R High-Resolution RGB Sensor with Gimbal (Smart Dovetail) — 65 MP global-shutter camera captures 1.43 cm GSD at 3 fps, stores to 512 GB SSD, and snaps on/off Astro via quick-release Smart Dovetail gimbal for ultra-detailed, large-area mapping.
Sentera 65R High-Resolution RGB Sensor with Gimbal (Smart Dovetail) brings 65-megapixel, global-shutter clarity to Astro. The GMAX3265 imager records 9344 × 7000-pixel JPEGs at 3 fps, while a quick-release Freefly Smart Dovetail gimbal keeps horizons level and missions fast. With 512 GB NVMe storage on board, the 65R covers more acres per flight without card swaps or dropped frames.
Key Features
- 65 MP global-shutter RGB imagery—1.43 cm GSD at 120 m (0.56″ at 400 ft).
- Sustained 3 fps capture, perfect for high-overlap mapping.
- Integrated IMU and push-button trigger for precise photologging.
- 27 mm lens (57.6° × 44.8° FOV) optimized for Astro cruise speeds.
- Quick-release Smart Dovetail, USB-C, GigE, UART, and digital I/O.
- NDAA-compliant hardware; Sentera PN 21931-02.
Sentera 65R High-Resolution RGB Sensor with Gimbal (Smart Dovetail) brings 65-megapixel, global-shutter clarity to Astro. The GMAX3265 imager records 9344 × 7000-pixel JPEGs at 3 fps, while a quick-release Freefly Smart Dovetail gimbal keeps horizons level and missions fast. With 512 GB NVMe storage on board, the 65R covers more acres per flight without card swaps or dropped frames.
Key Features
- 65 MP global-shutter RGB imagery—1.43 cm GSD at 120 m (0.56″ at 400 ft).
- Sustained 3 fps capture, perfect for high-overlap mapping.
- Integrated IMU and push-button trigger for precise photologging.
- 27 mm lens (57.6° × 44.8° FOV) optimized for Astro cruise speeds.
- Quick-release Smart Dovetail, USB-C, GigE, UART, and digital I/O.
- NDAA-compliant hardware; Sentera PN 21931-02.
Image & Optics
| Sensor | Gpixel GMAX3265, global shutter |
| Resolution | 9344 × 7000 px (65 MP) |
| Frame rate | 3 fps sustained |
| Lens / FOV | 27 mm focal length • 57.6° × 44.8° FOV |
| GSD @ 120 m / 400 ft | 1.43 cm / 0.56″ |
| Image format | JPEG |
Interfaces & Power
| Mount | Freefly Smart Dovetail (lightweight gimbal) |
| Data & control | USB-C • Gigabit Ethernet • UART • Digital I/O |
| Sync inputs/outputs | PWM trigger • PPS time sync • Exposure strobe out |
| Input voltage / power | 9–26 V, 12 W typical |
Storage & Physical
| Internal storage | 512 GB PCIe NVMe SSD |
| Dimensions (L × W × H) | 2.50″ × 2.48″ × 4.19″ |
| Weight (sensor + gimbal) | 588 g / 20.74 oz |
(1) Travel Case with Custom Foam
(1) Sentera 65R Sensor
(1) Lightweight Gimbal with Smart Dovetail
(1) 10 ft USB-C Cable
(1) AC Wall Power Adapter
(1) Right-Angle USB-C Adapter

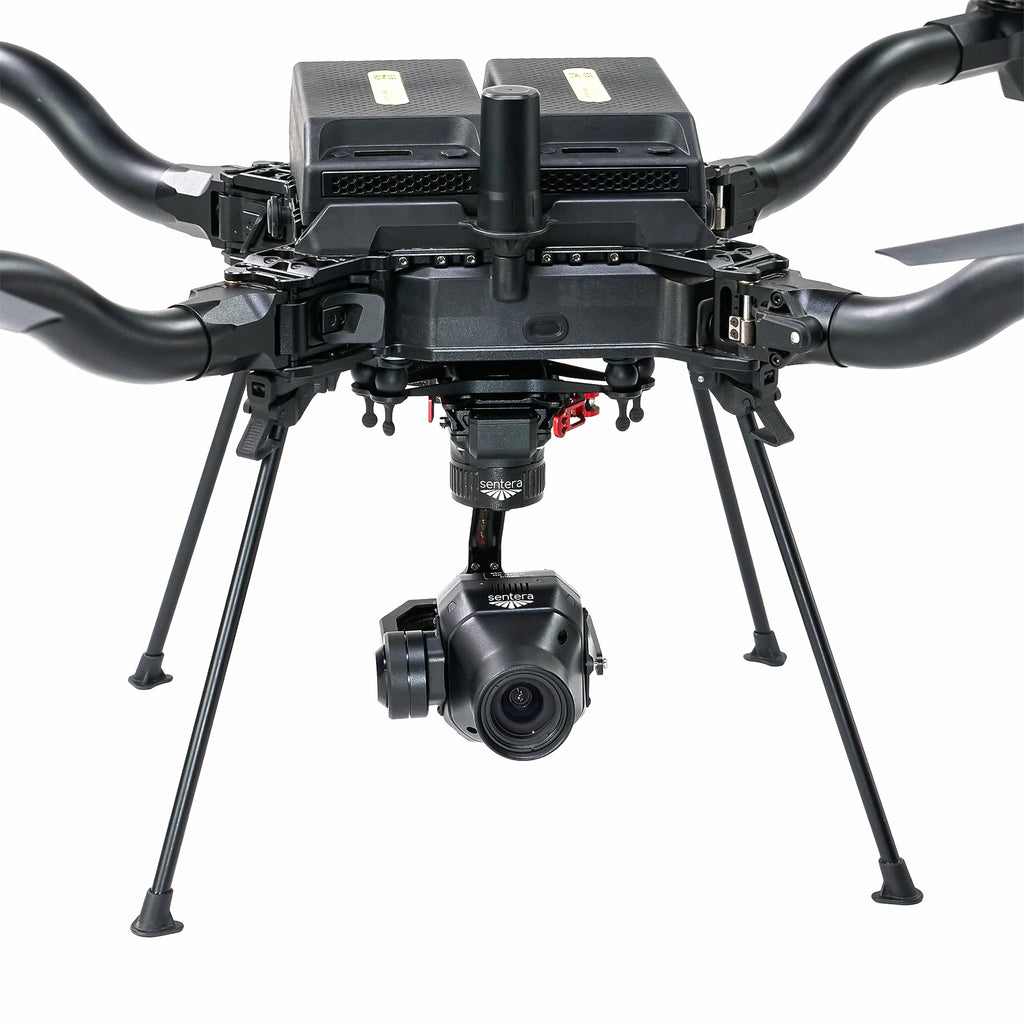

Astro drones equipped with the Astro Isolator (integrated Smart Dovetail receiver) or Smart Dovetail Kit.
